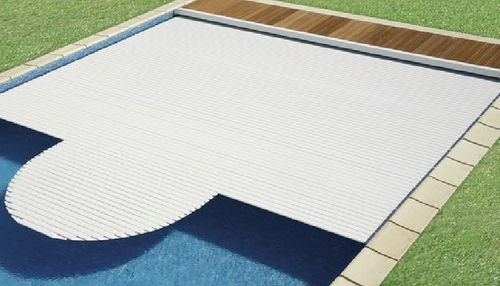

Automatic swimming pool cover ROUSSILLON

securityimmersedlightproof

Product description
The motor is integrated inside the roller axle, enabling installation in existing pools up to 6 metres in width. The submerged compartment housing the axle must be separated from the pool basin by a small concrete partition at construction time or retrofitted with a PVC partition. Available slat colours: white, beige and opaque blue. Motor torque options include 120 Nm and 250 Nm depending on configuration.

Reference table
060323 — Max. pool dimensions 7 x 15 m; 250 Nm motor (axle with end-stop) —
070620 — UNIVERSAL SUBMERSIBLE BOX 250V —

Documents available

• Commercial brochure (EN)
• General installation manual (EN / ES / FR) — buried automatic covers
• Installation manual Roussillon submerged model — in-shaft motor (EN) — 120 Nm
• Installation manual Roussillon submerged model — in-shaft motor (EN) — 250 Nm

Installation notes

• Motor integrated within the roller axle.
• Suitable for retrofit installation in existing pools (up to 6 m width).
• Submerged axle compartment must be separated by a concrete or PVC partition.
• Provide access for maintenance and comply with local electrical and safety regulations.

Technical specifications

• Motor located inside the roller axle.
• Compatibility: pools up to 6 m width (see reference for larger dimensions).
• Available slat colours: white, beige, opaque blue.
• Reference 060323: max. pool dimensions 7 x 15 m; 250 Nm motor (axle with end-stop).
• Spare/accessory: 070620 — Universal submersible electrical box 250V.
