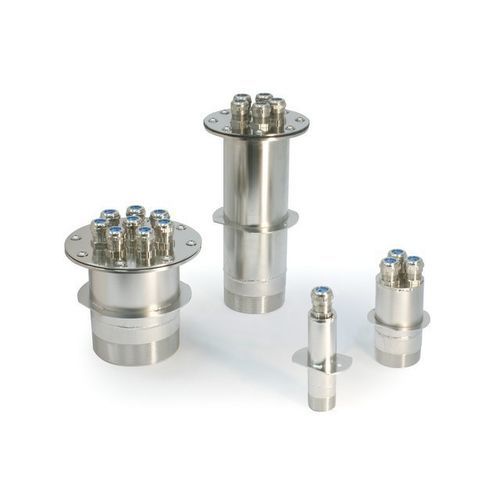

Cable hanger INLET FITTING

Description
The cable inlet fitting is a junction box designed to provide watertight cable passages through fountain or architectural water-feature walls while allowing the interconnection of multiple electrical devices. The unit is fully made from AISI 316 stainless steel for long-term corrosion resistance and is built for demanding installation environments such as fountains and water features.

Available variants

• 66599 | Ø 80 x 70 x 122 mm — 3 entries 2”G
• 66600 | Ø 175 x 175 x 152 mm — 5 entries 3”G
• 66601 | Ø 215 x 215 x 152 mm — 8 entries 4”G
• 66598 | Ø 70 x 48 x 122 mm — 1 entry 1”G

Technical specifications

• Material: AISI 316 stainless steel (entirely)
• Function: Junction box for watertight cable inlet through fountain or water-feature walls and to interconnect multiple devices
• Compatible cable diameters: 5 - 14 mm
• Ingress protection: IP68
• Corrosion resistance: Resistant to oxidation
• Recommended use: Fountain and architectural water-feature installations
• Available codes: 66599, 66600, 66601, 66598
