Lighting pool control panel ESSENTIAL

with remote control

Product overview
Two controller types are available for pool LED lighting: 1) RGB RC1100 remote controller (non-cabinet) compatible with RGB RC1100 lamps and projectors; signal range can be extended with the LumiPlus Range Extender (code 64633). It provides 12 static colors, 8 color-changing sequences and 8 color-changing speeds. 2) LumiPlus RGB ECO controller compatible with Essential RGB and RGB RC1100 lamps and projectors, offering 7 static colors and 7 color-changing sequences.

Highlights

• No electrical cabinet installation required for the RC1100 remote
• Signal extension option via LumiPlus Range Extender (64633)
• Color control: static colors, sequences and adjustable speeds for effects

Codes and items
75773 | ESSENTIAL 1100 REMOTE CTRL

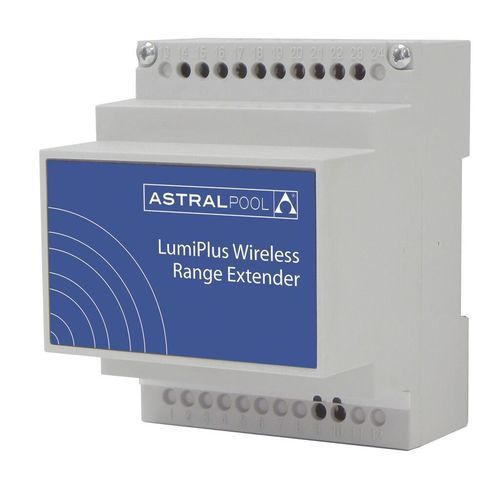

64633 | LumiPlus Range Extender
32458 | LumiPlus RGB ECO controller

Documentation

• Manual: Lumiplus Control Motion (applies to 64633 and compatible items)
• Manual: LumiPlus ECO (applies to 32458 and compatible items)

Technical specifications

• Controller types: RGB RC1100 remote (non-cabinet) and LumiPlus RGB ECO controller
• RGB RC1100 remote compatibility: RGB RC1100 lamps and projectors
• Signal extension: compatible with LumiPlus Range Extender (code 64633)
• RGB RC1100 features: 12 static colors, 8 sequences, 8 speeds
• LumiPlus RGB ECO features: 7 static colors, 7 sequences
• Application: control systems for LED pool lighting
• Brand: AstralPool
