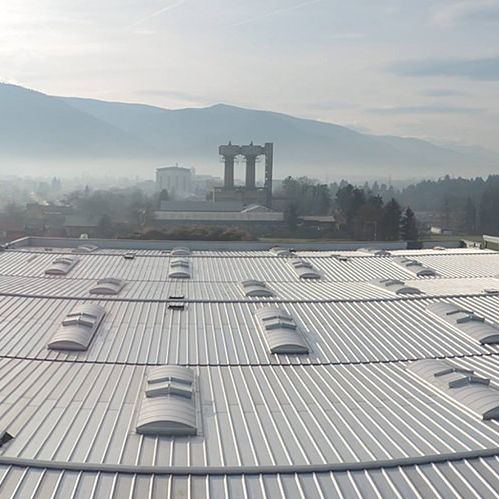

Metal roof system LMR600

standing seammetal profileinsulating panel

LMR600 consists of 600mm wide roll formed panels with a 50mm high corrugation. Each panel is fixed with a clip allowing linear and lateral expansion and contraction. The flat side of the panel contains cross flutes improving the panel performance under foot traffic. The panels are produced in 0.66mm nominal thickness in high tensile strength Aluzinc coated steel. Advantages The clip allows free expansion and contraction, thus avoiding any stress in the roof system Long-lasting, ultimate moisture tightness Side lap formed on site with a special seaming machine, crimping a 360° double-lock seam The panel is connected to the secondary structure with a special clip and roll formed on its top into the seam Once seamed, the entire roof forms a monolithic metal membrane Thermal bridges reduced to spacing clips Technical Specifications Consists of 600mm wide roll formed panels with a 50mm high corrugation The panel is fixed with a clip allowing linear and lateral expansion and contraction The flat side of the panel contains cross flutes improving the panel rigidity under foot traffic The panels are produced in 0.66mm nominal thickness Aluzinc coated high tensile strength steel Standing seam Accessories Skylights Sky domes Smoke vents Roof jack Roof curbs Ventilators All RAL colours can be delivered. For short delivery times, we provide some stock colours, which you can see on the right: This system is the most cost-effective The insulation is made of soft faced glass fiber providing good acoustical comfort It is available with Isobloc and increased insulation thickness to improve overall thermal performance and reduction of thermal bridges
