Create an architectural feature
Conceived by London based creative agency Fourmation, Vault is a culmination of their experience of designing interior spaces and addresses the need for a flexible, easily installed lighting system. Ideal for situations with high level open exposed ceilings, the system creates an architectural feature, complimenting any interior space.
Material & design

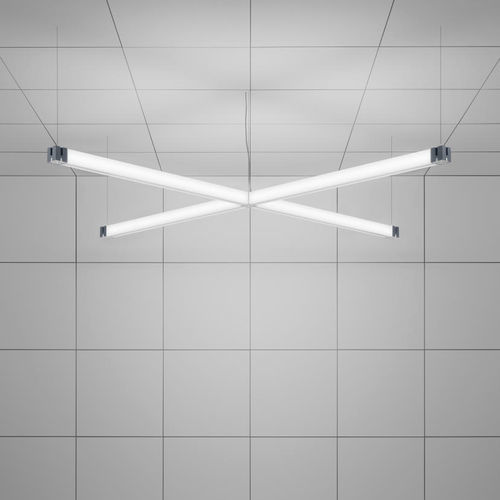

The simplicity of the LED light profile and four way connection block allows you to build any configuration from linear pendants to full ceiling grids. Vault is made up of a frame in extruded aluminium with light opening in opal acrylic glass. Block in die-cast solid metal.
Blocks
There are three different kinds of blocks.
Power block - Delivered with connection cable and external driver.
Link block - Enables electrical through wiring.
Block - Only for mechanical connection.
Powering
The light bars are instantly powered when placed inbetween the blocks. From each Power block up to four light bars can be connected horizontally. Each Power block can power 6,2m light bar.
Light distribution
Profile can be mounted in two directions, main direction of the light can be up and down or to the sides.
Installation
Vault makes a quick and cost effective installation possible. The blocks are delivered with a 4 m height adjustable wire. The light bars are instantly powered when placed inbetween the blocks. Easy to rebuild, upgrade and adapt in an already existing lighting system.
Acoustic tile
Vault can be installed with acoustic tile. This is what it looks like from the top.
