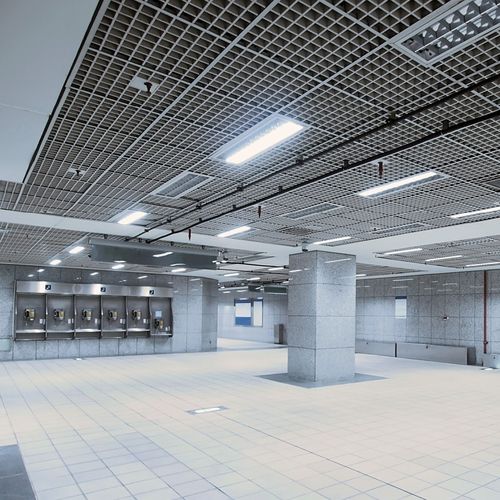

Painted aluminum suspended ceiling BASE 4 – T15

panelfor conference roomsindoor

Easy to install BASE 4 panels can be simply laid both in T24 and T15 visible structure, to create smart false ceilings. Open cell panels laid in visible T24 | T15 structure 20×20 | 30×30 | 40×40 50×50 | 60×60 | 75×75 Aluminium 4/10 Panels: 600×600 | 600×1200 mm other modules on request Elements: 4xh18 | 4xh30 mm Structure: Steel Strong EASY T24 | EASY T15 EASY ANTISIMICA T24 | EASY FOX White | silver pre-painted aluminium RAL/NCS coating Antiseismic Kit for plenum 1,2 m False ceiling made in 4/10 pre-painted aluminum, tiles are made of TM and TF elements, with a U-shaped section, 4 mm base and 18 or 30 mm high, which cross each other to realize the desired mesh (20x20 | 30x30 | 40x40 | 50x50 | 60x60 | 75x75). The bearing structure has a T section (Atena Steel Strong Easy T24 | Easy Antisismico | Easy Fox | Easy T15) and forms a 600x600 and 600x1200 mm mesh, on which the open cell tile will be laid. The structure will be fixed to the concrete with proper hangers (Twister, Nonius, Standard hanger with spring, 90° hanger). The perimeter frame will be made with 5/10 aluminum profiles “C” 25x42x10 mm profiles supplied with the same material and finishing of the open cell tiles.
