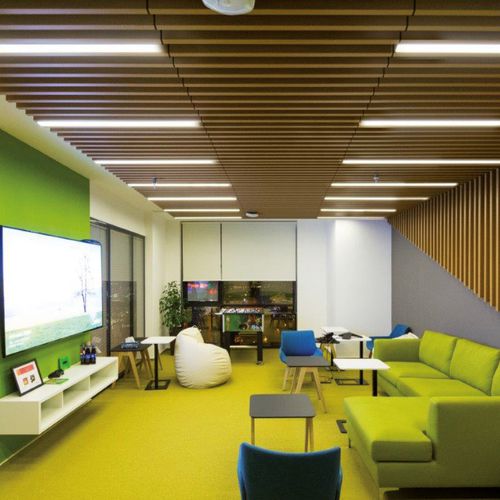

Atena FREE FLOW BAFFLE system overcomes the constraints of traditional installation systems, thanks to the innovative "Tilt-Spin" coupling, which allows the free orientation of the Baffles on the three axes, satisfying any angle of inclination and opening radius. The patented "Tilt-Spin System" can be used for installation with carriers, special profiles and T24 structures.
30 x 64 | 100 | 150 | 200 | 300,
40 x 100 | 140 | 180,
50 x 100 | 150 | 200 | 300,
Baffle max. lenght 4000 mm.
Other heights up to 400 mm, on request.
Special patented Tilt-spin systems
suitable for
Steel Strong Easy base 24
Profile to joint difference in height
Custom-made profiles
Steel | Aluminium
Free Flow Baffle
Installation with no constraints
360° inclination and rotation
Boxed shape with right edge
Open gap, variable distance
White – silver pre-painted aluminum
White – silver pre-painted steel
RAL/NCS Coating
Sublimation of any image and effect
Plain or perforated surface
Antiseismic Kit for plenum 1,2 m
