Electric water heater NANTO

undersinkoversinkvertical

Product overview
Compact storage electric water heater designed for small spaces and direct hot-water supply. Available in above-sink (AS) and under-sink (US) versions with a 2000 W heating element.

Perks of Nanto

• Available for above-sink or under-sink installation depending on model
• Visual installation guide printed on the product for simplified setup
• Eco and Absence modes to reduce energy consumption during low use
• O’Pro exclusive anti-corrosive protection for extended tank life

COMFORT

• Fast heating time for quick availability of hot water
• Designed for immediate domestic hot-water supply at point of use

DURABILITY

• O’Pro anti-corrosive protection extending tank service life
• Magnesium anode for sacrificial corrosion protection
• Diamond-quality glass lining to protect the inner tank
• Pressure relief valve for safety
• Dielectric union to prevent galvanic corrosion
• Specific lip gasket to avoid corrosion around the flange

ENERGY SAVINGS

• Eco and Absence modes for optimized energy use
• High-efficiency water inlet design
• CFC-free high-density polyurethane insulation

INSTALLATION

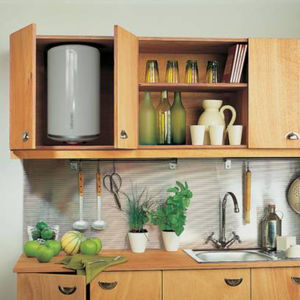

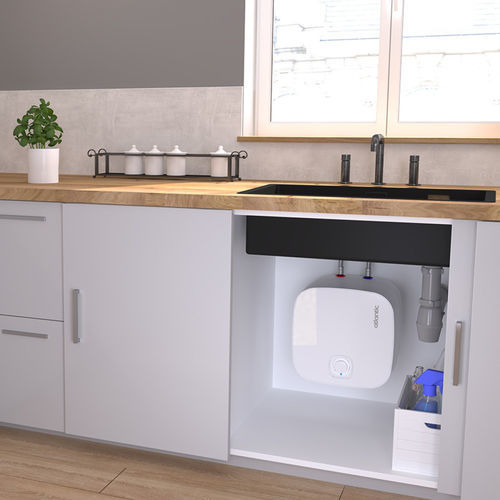

• Above-sink (AS) and under-sink (US) versions available
• Wall-mounting plate for simple and secure installation
• Visual guide on the product to assist correct mounting on wall plates

Models

• Nanto AS 10L — Model: 10; Installation: Above sink; Output: 2000 W; Heating element: Copper; Tank protection: Magnesium; Dimensions (L x H x D): 380 x 360 x 260 mm; Net weight: 6.9 kg
• Nanto US 10L — Model: 10; Installation: Under sink; Output: 2000 W; Heating element: Copper; Tank protection: Magnesium; Dimensions (L x H x D): 380 x 360 x 260 mm; Net weight: 6.9 kg
• Nanto AS 15L — Model: 15; Installation: Above sink; Output: 2000 W; Heating element: Copper; Tank protection: Magnesium; Dimensions (L x H x D): 390 x 360 x 320 mm; Net weight: 7.9 kg
• Nanto US 15L — Model: 15; Installation: Under sink; Output: 2000 W; Heating element: Copper; Tank protection: Magnesium; Dimensions (L x H x D): 390 x 360 x 320 mm; Net weight: 7.9 kg
• Nanto AS 30L — Model: 30; Installation: Above sink; Output: 2000 W; Heating element: Copper; Tank protection: Magnesium; Dimensions (L x H x D): 470 x 440 x 390 mm; Net weight: 11.8 kg

Technical specifications

• Installation: above sink or under sink depending on model
• Output: 2000 W (typical for listed models)
• Heating element: Copper heating element
• Tank protection: Magnesium anode
• Tank lining: Diamond-quality glass lining
• Anti-corrosion: O’Pro exclusive anti-corrosive protection
• Safety: Pressure relief valve; Dielectric union
• Gasket: Specific lip gasket to avoid corrosion around the flange
• Operating modes: Eco and Absence positions for energy savings
• Insulation: CFC-free high-density polyurethane
• Other features: High-efficiency water inlet; Fast heating time; Visual installation guide; Wall-mounting plate for easy installation
