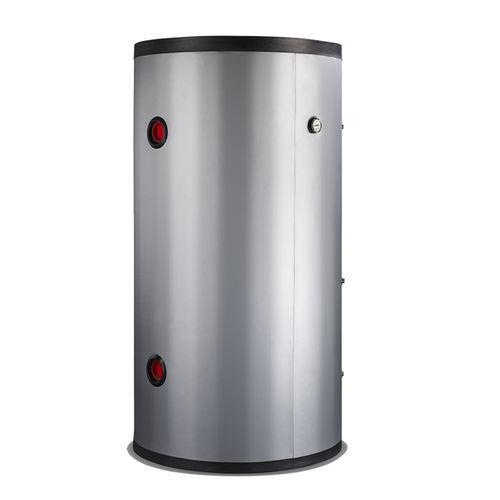

Floor hot water cylinder CORPRIMO

verticalcommercialresidential

Product description
Storage tank for primary closed circuit. Designed for integration in primary heating/cooling circuits as a buffer/accumulator. Available in multiple capacities and in compact TB versions for reduced installation height.

The perks of Corprimo

• Wide range of capacities
• All compact models (TB) below 2.20 m overall height
• M1/SNC flexible jacket or M0 steel jacket with 100 mm insulation
• 1 1/4 in drain at the bottom

Models and key dimensions
Model | Service pressure | Tank diameter | Tilting dimension | Min. height of installation area
Corprimo 500L | 4 bars | 650 mm | 1980 mm | 2100 mm
Corprimo 750L | 4 bars | 790 mm | 1960 mm | 2135 mm
Corprimo 1000L | 4 bars | 790 mm | 2480 mm | 2660 mm
Corprimo 1500L | 4 bars | 1000 mm | 2270 mm | 2415 mm
Corprimo 1500L | 4 bars | 1250 mm | 1720 mm | 1895 mm
Corprimo 2000L | 4 bars | 1250 mm | 2180 mm | 2330 mm
Corprimo 2500L | 4 bars | 1250 mm | 2530 mm | 2690 mm
Corprimo 2500L TB | 4 bars | 1500 mm | 1970 mm | 2106 mm
Corprimo 3000L | 4 bars | 1250 mm | 2950 mm | 3115 mm
Corprimo 3000L TB | 4 bars | 1500 mm | 2180 mm | 2326 mm

Documents
Installation Manual Corprimo2 (document listed on the page)
