Floor hot water cylinder CORSUN 2

verticalcommercialresidential

Product description

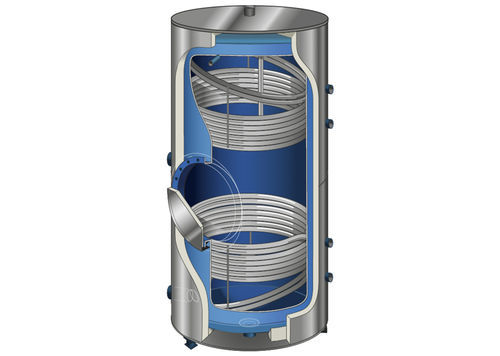

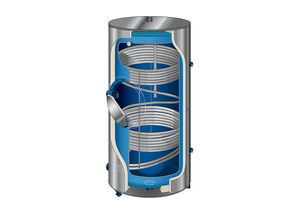

Solar indirect calorifier with double coil Corsun 2 designed for integration with solar thermal systems. Double coil configuration allows simultaneous connection to a solar circuit and an auxiliary heat source; compatible with up to 24 m² of solar collectors.

Advantages of Corsun 2

• Support for a solar field up to 24 m²
• Special high-temperature resistant glass-lined tank with diamond-quality enamel
• Choice of M1/SNC flexible jacket or M0 steel jacket with 100 mm insulation

Durability

• Steel tank with diamond-quality enamel providing high resistance to corrosion and temperature

Energy savings

• Design optimised for solar energy integration to reduce auxiliary energy consumption

Characteristics / Technical specifications

• Type: Solar indirect calorifier with double coil
• Coils: Double coil (two heat exchangers)
• Solar collectors compatibility: Up to 24 m²
• Tank material: Steel
• Tank lining: Diamond-quality enamel (special glass lining resistant to high temperatures)
• Jacket options: M1/SNC flexible jacket or M0 steel jacket
• Insulation thickness: 100 mm
