Electric water heater INDIRECT

solarwall-mountedvertical

Product overview
Indirect is an indirect water heater with a coil exchanger that produces domestic hot water by using continuous heat sources (boiler, heat pump, solar). It provides stable DHW year-round when connected to the building heating system.

Key benefits

• Fast production of large volumes of domestic hot water throughout the year
• Available in vertical wall-mounted models (100, 150, 200 L) and floor-standing models (200, 300 L)
• Connection to the heating system enables economical operation
• Energy class B due to reinforced tank insulation (0% CFC foam)

COMFORT

• Quick production of significant hot water capacity in any season

DURABILITY

• Magnesium anode for tank protection
• Pressure relief valve
• Dielectric union
• Specific lip gasket to prevent flange corrosion

ENERGY SAVINGS

• High-efficiency water inlet
• Compatible with building heating systems for cost-effective production
• Energy class B with reinforced, CFC-free insulation

INSTALLATION

• Safe operation: IP25 for wall-mounted models / IP24 for floor-standing models – compliant with electrical safety standards
• Dedicated insertion point for the hot water regulation probe for seamless integration
• Top and bottom handles for easier handling and installation (vertical wall-mounted models)
• Fully detachable screw-fixed hood (vertical wall-mounted models)
• Integrated cable gland (vertical wall-mounted models)

Models and characteristics

• Indirect WH 100L
  • Model: 100
  • Installation: Vertical wall-mounted
  • Tank protection: Magnesium anode
  • Dimensions (L x H x D): 880 x 600 x 580 mm
  • Net weight: 38 kg
• Indirect WH 150L
  • Model: 150
  • Installation: Vertical wall-mounted
  • Tank protection: Magnesium anode
  • Dimensions (L x H x D): 1190 x 600 x 580 mm
  • Net weight: 49 kg
• Indirect WM 200L
  • Model: 200
  • Installation: Vertical wall-mounted
  • Tank protection: Magnesium anode
  • Dimensions (L x H x D): 1510 x 600 x 580 mm
  • Net weight: 59 kg

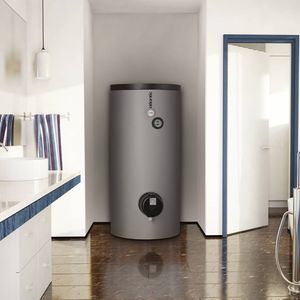

• Indirect FS 200L
  • Model: 200
  • Installation: Floor-standing
  • Dimensions (L x H x D): 1270 x 590 x 590 mm
  • Net weight: 72 kg
• Indirect FS 300L
  • Model: 300
  • Installation: Floor-standing
  • Tank protection: Magnesium anode
  • Dimensions (L x H x D): 1780 x 590 x 590 mm
  • Net weight: 100 kg

Technical specifications

• Heating method: Indirect coil exchanger connected to continuous energy sources (boiler, heat pump, solar)
• Capacities and configurations: Vertical wall-mounted (100, 150, 200 L) and floor-standing (200, 300 L)
• Tank insulation: Reinforced insulation, 0% CFC foam
• Energy class: B
• Tank protection: Magnesium anode
• Safety: Pressure relief valve; dielectric union; specific lip gasket to prevent flange corrosion
• Installation features: IP25 (wall-mounted) / IP24 (floor-standing) electrical protection; probe insertion point; integrated cable gland (wall-mounted); top and bottom handles (vertical models)
• Additional: High-efficiency water inlet; designed for connection to heating systems for economical operation
