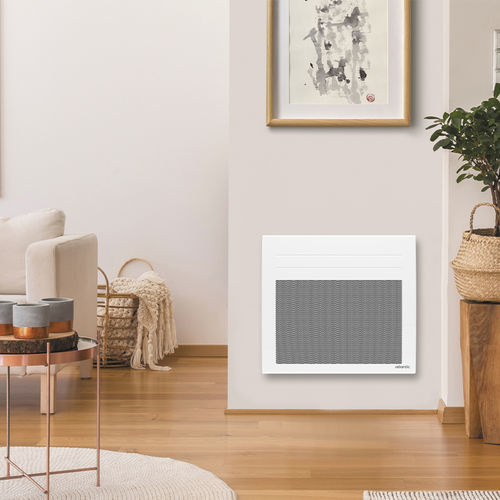

Electric radiant panel SOLIUS NEO

wallresidentialcommercial

Overview Extensive heating panel designed for uniform indoor comfort, featuring an extruded aluminium black‑painted heating element and weekly programming for precise temperature control.

Key features

• Extruded aluminium heating element, black painted, wide heating surface
• Open-window detection
• Weekly programming (day-by-day and hour-by-hour)

Performance

• Immediate sensation of warmth with homogeneous heat distribution
• Large heating surface for effective radiant heat

Energy savings

• Flexible weekly programming to adapt operation to occupancy patterns
• High-precision electronic thermostat for accurate temperature control
• Open-window detection to avoid wasted energy

Installation

• Electrical safety: Class II, IP24 protection and dual electric insulation
• Wall mounting: H-shaped vertical support for straightforward installation
• Variants: model available with plug and optional standing kit for freestanding use

Technical specifications

• Heating element: Extruded aluminium, black painted, wide heating surface
• Programming: Weekly programming (day per day / hour per hour)
• Thermostat: High-precision electronic thermostat
• Open-window detection: Yes
• Safety: Class II, IP24 protection, dual electric insulation
• Installation: H-shaped vertical support; model available with plug and optional standing kit
• Connectivity: Available as an option on supported models
• Available models and main dimensions / outputs:
  • Solius Neo H 300W — Output: 300 W; Dimensions (L x H x D): 480 x 450 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 500W — Output: 500 W; Dimensions (L x H x D): 480 x 450 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 750W — Output: 750 W; Dimensions (L x H x D): 480 x 450 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 1000W — Output: 1000 W; Dimensions (L x H x D): 480 x 530 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 1250W — Output: 1250 W; Dimensions (L x H x D): 480 x 680 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 1500W — Output: 1500 W; Dimensions (L x H x D): 480 x 750 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo H 2000W — Output: 2000 W; Dimensions (L x H x D): 480 x 970 x 130 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo V 1000W — Output: 1000 W; Dimensions (L x H x D): 740 x 470 x 120 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo V 1500W — Output: 1500 W; Dimensions (L x H x D): 960 x 470 x 120 mm; Connectivity: optional; Open-window detection: Yes
  • Solius Neo V 2000W — Output: 2000 W; Dimensions (L x H x D): 1190 x 470 x 120 mm; Connectivity: optional; Open-window detection: Yes
