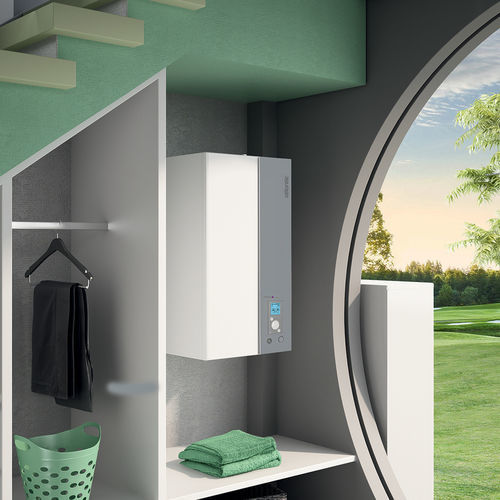

Air/water heat pump ALFEA EXCELLIA HP A.I.

commercialresidentialoutdoor

Product overview
Air-to-water heat pump series designed for large residential buildings and cold climates. Integrated functions provide space heating and domestic hot water (DHW) in a compact indoor/outdoor split system.

Perks

• Patented coaxial heat exchanger for consistent hydraulic performance
• User-friendly interface for simplified operation
• Remote control capability via Cozytouch application with NAVISTEM 400S control system

CONNECTIVITY

• Remote piloting available through Cozytouch when paired with NAVISTEM 400S

COMFORT

• Integrated heating and domestic hot water production
• Operational comfort in summer and winter down to -20°C
• Even heat distribution enabled by the coaxial exchanger

DURABILITY

• Outdoor unit: anti-corrosion hydrophilic aluminium fins and grooved copper tubes

ENERGY SAVINGS

• Primary energy source: renewable calories from ambient air
• Inverter temperature control adapts compressor speed to demand for optimized consumption
• Low-consumption circulation pump

INSTALLATION

• Accessory kits available to meet specific installation requirements

Models
Model — Output — Power supply — Connectivity — Heat pump energy class (heating 35°) — Indoor unit dims (h x w x d) — Outdoor unit dims (h x w x d) — Refrigerant fluid
Alfea Excellia HP A.I 16 — 16 kW — Single-phase — No — A++ — 1428 x 1080 x 480 mm — 970 x 560 x 560 mm — R410A
Alfea Excellia HP A.I 15 TRI — 15 kW — Three-phase — No — A++ — 1428 x 1080 x 480 mm — 842 x 448 x 477 mm — R410A
Alfea Excellia HP A.I 17 TRI — 17 kW — Three-phase — No — A++ — 1428 x 1080 x 480 mm — 842 x 448 x 477 mm — R410A

Caractéristiques / spécifications techniques

• Series / commercial name: Alfea Excellia HP A.I.
• Integrated functions: Heating and domestic hot water (DHW) integrated
• Operating range: comfort in summer and winter down to -20°C
• Hydraulic design: patented coaxial heat exchanger for homogeneous heating
• Control system: NAVISTEM 400S — compatible with remote piloting via Cozytouch application
• Energy optimisation: inverter temperature control; low-consumption circulation pump
• Outdoor unit treatment: anti-corrosion hydrophilic aluminium fins and grooved copper tubes
• Refrigerant fluid: R410A
• Available outputs: 15 kW (TRI), 16 kW (single-phase), 17 kW (TRI)
• Indoor unit dimensions (h x w x d): 1428 x 1080 x 480 mm
• Outdoor unit dimensions vary by model: 970 x 560 x 560 mm (16 kW) or 842 x 448 x 477 mm (15/17 kW)
• Heat pump energy class (heating 35°): A++
• Heat pump energy class (heating 55°) - space heating: A++
