Wheelchair lifting platform IP 1400A
outdoorautomatedretractable

wheelchair lifting platform
wheelchair lifting platform
Add to favorites
Compare this product


Characteristics

Use
for wheelchairs
Location
outdoor
Other characteristic
automated, retractable, mechanical

Description

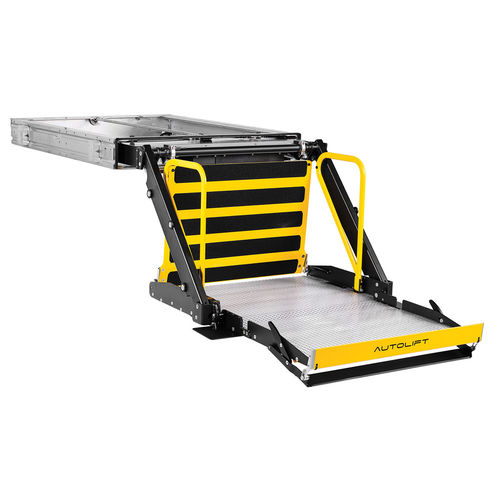

IP 1400A is a semi-automatic retractable lift developed to be fitted in the side or rear of the minibuses. Thanks to the carriage movements and to the different arms lengths availability, IP 1400A, can be positioned as step lift or concealed between a vehicle raised floor and the outer chassis. . Loading capacity 350 kg . Electrical system 12/24 V . Platform width 810 mm . Platform lenght 1222 mm . Own weight 165 kg . Platform with antislip and draining surface . Controlled with a 4 button pendant control switch . Automatic front safety flap with mechanical system . Automatic and adjustable rear safety flap . Safety handrails on the platform . Auxiliary emergency hand pump

VIDEO

Catalogs

ip 1400a
ip 1400a
2 Pages
