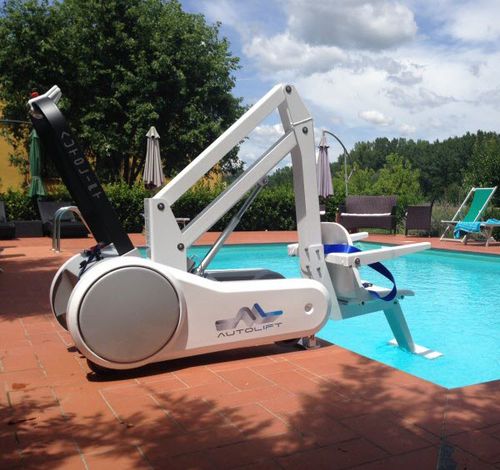

Electric patient lift I-SWIM

hydraulicheight-adjustablerail-mounted

I-Swim pool lift complies the following regulations: – Directive 2006/42/CE | Machine Directive – Directive 2004/108/EC | EMC Electromagnetic Compatibility – UNI EN ISO 10535 | Hoist For The Transfer of Disabled Persons – 93/42/CEE | Medical Device Directive DIMENSIONS AND TRAVEL i-swim - i-swim L Lenght - 1267 mm - 1294 mm Width - 640 mm - 640 mm Height - 1512 mm - 1607 mm Seat max height - 512 mm - 484 mm Seat travel down - 595 mm - 745 mm FEATURES / TECHNICAL SPECIFICATION: Structure Materials - Aluminum / Stainless Steel Nr of Wheels - 4 (2 with brake) Lifting structure - Parallelogram Painting - Powder Coating Safety - Anti-Tip and Stabilizing System – Patented Lifting Capacity - 136 Kg (120 Kg i-swim L) Own Weight - ca. 140 Kg Voltage - 24V Battery datas - 2 Batteries – 2 x 18Amp Battery Working range - 50 Cycles approx Battery Charger - Included Instruments (on Handrail) - Battery Load Indicator Up-Down Push Buttons Emergency Stop Button
