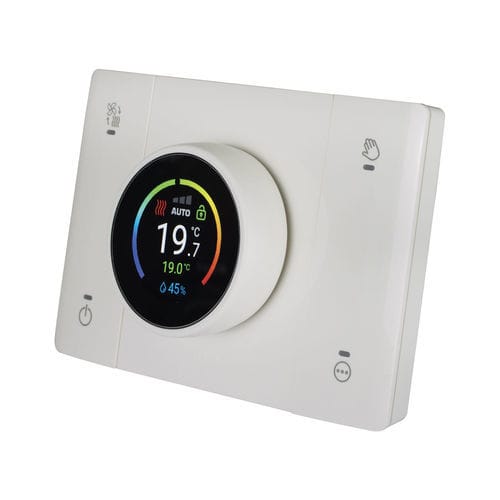

Digital thermostat AVEBUS DOMUS

electronicprogrammablesmart

Description
Room thermostat for AVEbus home-automation systems with color display and rotary knob for temperature adjustment. Can be paired with an actuator for thermal control. Thermal profile management is available in conjunction with the home-automation web server. Device shows relative humidity, includes a local changeover relay and an input for an additional NTC probe. Colour: White Domus - Monobloc.

Commercial characteristics
EAN13: 8008379507207
Standard packaging: 1.00
Minimum packaging: 1.00
Min pack EAN13: 8008379507207
Min pack length: 158.00 mm
Min pack width: 98.00 mm
Min pack height: 55.00 mm
Min pack volume: 0.85 L
Min pack weight: 280.00 g
Minimum order quantity: 1.00
Metel reference: TERMOSTATO AVEBUS DOMUS
Product status: In stock

Warnings and safety

• Safety instructions (document available)
• Warranty and claims (document available)

ETIM data
Mounting: Flush-mounted
Colour: White (RAL 9010)
Width: 125 mm
Height: 86 mm
Depth: 47.5 mm
Connection: 3/4-wire
Display: Yes (colour)
Contact type: Changeover contact (NO/NC)
Measuring range: 15–35 °C
Control: Rotary
Protection degree: IP40
Max contact voltage: 230 V
Max contact load: 5 A
Standby consumption: 1 W
Protocol/integration: AVEbus, Google Assistant and Amazon Alexa compatible (no Apple HomeKit)
External sensor: Yes
Heating output: 1
Cooling output: 1

Manuals and downloads

• Catalog page Pag437: D000000229.pdf
• Catalog page Pag531: D000000271.pdf
• Thermostat manual AVEBus 44xABCRT: 0000024514.pdf
• DXF outline: 0000023110.dxf
• 441ABCRT (PNG): 0000037714.png
• SOLID STL: 0000020025.stl
• SOLID STEP: 0000020019.stp

Service sheets
44..ABCRT - THERMOSTAT WITH COLOUR DISPLAY AVEbus - MONOBLOC: 0000028604.pdf
C0877 - 44..ABCRT – THERMOSTAT WITH COLOUR DISPLAY AVEbus - MONOBLOC: 0000038559.pdf

Software and firmware
EasyConfig version 280: 0000044787.zip
FW-THA-IOT - Thermostat firmware AVEbus (44xABCRT) - v172: 0000048912.bin
SFW-BSA 6.1.1.7: 0000044784.zip

Technical specifications

• Model: 441ABCRT (TERMOSTATO AVEBUS DOMUS)
• EAN: 8008379507207
• Mounting: Flush-mounted
• Colour: White (RAL 9010)
• Dimensions: 125 mm (W) x 86 mm (H) x 47.5 mm (D)
• Module width: 3 modules
• Display: Yes (colour display)
• Control: Rotary knob
• Adjustment range: 15–35 °C
• I/O: 1 heating output, 1 cooling output, input for additional NTC probe
• Contact type: Changeover (NO/NC)
• Max contact voltage: 230 V
• Max contact load: 5 A
• Thermostat class: III
• Standby consumption: 1 W
• Protection rating: IP40
• Electrical connection: 3 or 4 wires
• Protocols/integrations: AVEbus, Google Assistant, Amazon Alexa
• Accessories/software: manual, catalog pages, DXF, PNG, STL, STP, firmware and EasyConfig software
