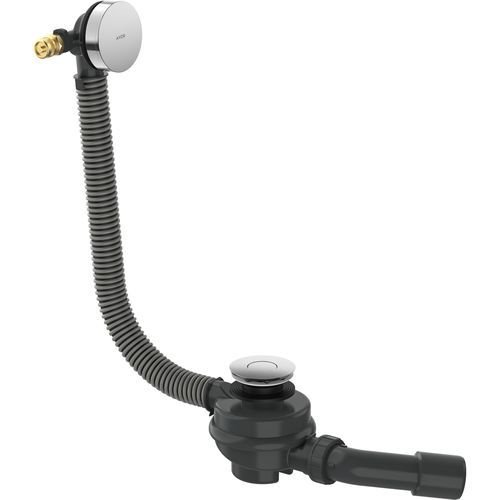

Bathtub drain with overflow 42540000

Product name
AXOR Exafill complete set – bath filler with waste and overflow set for bathtub

Article details

• Consists of: finish set overflow with bath filler, basic set, waste set, odour trap
• Suitable for bathtubs of cast iron, steel and plastic; fits standard and extra-large tubs with waste outlet diameter 52 mm
• Water supply via the overflow with swivel water inlet
• Easy cleaning with access for plumber's snake; easy waste and overflow installation with included tool
• Connection inlet mixed water: external thread (G ½); clamp connection
• Rotatable siphon housing and rotatable connection bend, diameters 40/50 mm
• Double-sided seals on outlet and overflow; shortenable and flexible overflow hose
• Flat version requires only 46 mm space behind bathtub
• Pipe outer diameter (drain pipe): 50 mm; water seal height: 50 mm
• Drainage capacity (accumulation height 300 mm): 64 l/min; overflow capacity (accumulation height 60 mm above centre of overflow hole): 36 l/min
• Maximum flow rate at 3 bar: 23 l/min
• Materials: waste set – Polypropylene (PP), ABS; overflow and filler – ABS, Polypropylene (PP)
• Flow rate class: O; Noise class: I

Scope of delivery

• Complete set
• Seals
• Mounting material
• Installation tools
• Assembly instructions

Installation information
Please observe the safety and installation instructions provided with the product. Refer to the installation manual for details and recommended installation clearances.

Technical specifications

• Suitable for bathtubs with waste outlet diameter: 52 mm
• Pipe outer diameter (drain pipe): 50 mm
• Connection inlet mixed water: external thread (G ½)
• Rotatable connection bend diameter: 40/50 mm
• Water seal height: 50 mm
• Drainage capacity (accumulation height 300 mm): 64 l/min
• Overflow capacity (accumulation height 60 mm above centre of overflow hole): 36 l/min
• Maximum flow rate at 3 bar: 23 l/min
• Materials: waste set – Polypropylene (PP), ABS; overflow and filler – ABS, Polypropylene (PP)
• Flow rate class: O
• Noise class: I
• Flat version requires only 46 mm space behind bathtub
• Includes shortenable and flexible overflow hose; rotatable siphon housing and rotatable water inlet
