Bidet mixer tap 47210000

countertopmechanicalchrome-plated brass

Product

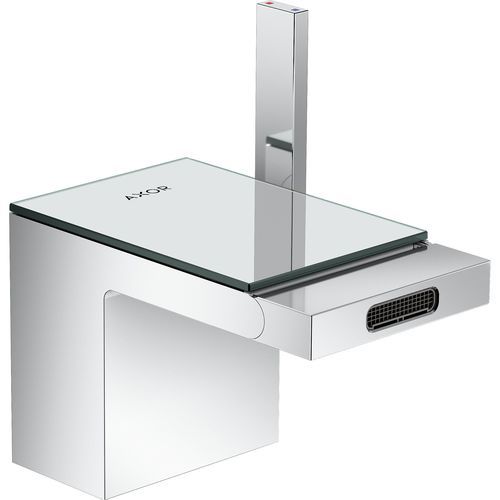

AXOR MyEdition single-lever bidet mixer with push-open waste set. Finish: Chrome/Mirror Glass. Art. no. 47210000.

Special product features

• EcoSmart: Standard taps equipped with EcoSmart technology to save water and energy. Consumes max. 5 l/min thanks to a flow limiter while maintaining the full water experience.
• AirPower: Mixes generous quantities of air into the water. Enriched droplets are light, soft on the skin and reduce splash in the wash basin for more efficient water use.

Article Details

• consists of: single-lever bidet mixer, plate, push-open waste set
• projection: 121 mm
• spout height: 83 mm
• plate made of safety glass (mirror finish)
• spray type: NormalSpray
• maximum flow rate at 3 bar: 5 l/min
• ceramic cartridge
• temperature limitation adjustable
• suitable for continuous flow water heaters
• push-open waste set G 1¼
• connection type: G ⅜ hose connections
• connection dimension: DN15
• EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Scope of delivery

• single-lever bidet mixer
• connection hoses
• fixing set
• assembly instructions

Installation information
Please observe the safety and installation instructions for your product; these are provided in the assembly/installation instructions.

Warranty
5 years warranty.

Technical specifications

• Projection: 121 mm
• Spout height: 83 mm
• Spray type: NormalSpray
• Maximum flow rate (at 3 bar): 5 l/min (EU taxonomy: max. 6 l/min)
• Ceramic cartridge
• Temperature limitation adjustable
• Suitable for continuous flow water heaters
• Push-open waste set: G 1¼
• Connection type: G ⅜ hose connections (connection dimension DN15)
• Plate: safety glass (mirror)
