Countertop mixer tap 34822000

chrome-plated brasskitchen2-hole

Product

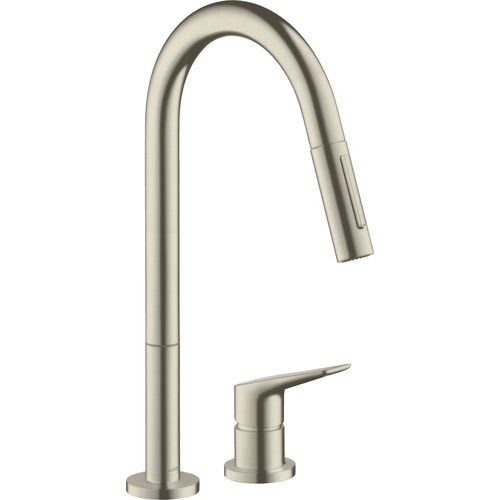

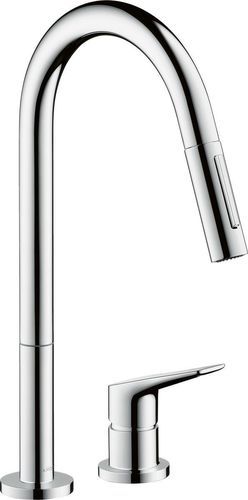

AXOR Citterio M 2-hole single-lever kitchen mixer 220 with pull-out spray (art. no. 34822000). Kitchen mixer designed for professional installations with ComfortZone 220, pull-out spray and multiple finish options.

Special product features

• QuickClean — flexible silicone nozzles for easy limescale removal to reduce maintenance time.
• ComfortZone — large clearance between spout and sink for improved workspace; swivel range adjustable in two steps.
• Pull-out — retractable spray increases reach around the sink for greater handling and flexibility.
• MagFit — magnetic docking for the pull-out spray for secure reattachment and correct positioning after use.

Article Details

• ComfortZone 220
• Swivel range adjustable in 2 steps to 110° or 150°
• Shower spray: LaminarSpray
• Lockable shower spray; spray returns via press-operated diverter
• MagFit magnetic shower support
• Quick connect hose
• Connection dimension: DN15
• Maximum flow rate at 3 bar: 9 l/min
• Ceramic cartridge
• Connection type: G 3/8 hose connections
• Temperature limitation adjustable
• Integrated non-return valve
• Suitable for continuous flow water heaters
• Extension length up to 50 cm

Scope of delivery

• 2-hole single-lever kitchen mixer
• Connection hoses
• Fixing set
• Mounting material
• Assembly instruction (PDF)

Installation information
Assembly instruction (Mixer) available as PDF (8 MB). Dimensional and technical drawings available for specification and installation planning.

Finishes

• Chrome
• Brushed Bronze
• Brushed Gold Optic
• Polished Red Gold
• Brushed Red Gold
• Polished Black Chrome
• Brushed Black Chrome
• Stainless Steel Finish
• Brushed Nickel
• Brushed Brass
• Polished Gold Optic

Warranty
5 years warranty.

Technical specifications

• Article number: 34822000
• Product line / Denomination: AXOR Citterio M
• Type: 2-hole single-lever kitchen mixer 220 with pull-out spray
• ComfortZone: 220
• Swivel range: adjustable to 110° or 150°
• Flow rate (max at 3 bar): 9 l/min
• Connection dimension: DN15
• Connection type: G 3/8 hose connections
• Cartridge: ceramic
• Features: lockable shower spray, LaminarSpray, MagFit magnetic support, quick connect hose, integrated non-return valve
• Suitable for: continuous flow water heaters
• Extension length: up to 50 cm
• Finish options: multiple (Chrome and various brushed/polished metal finishes)
