Modular all-in-one photovoltaic system EXCEL SOLAR

Overview
IKO EXCEL SOLAR is a complete photovoltaic waterproofing system for flat roofs using flexible self-adhesive modules. It can be installed on all types of supporting substrates for new build and refurbishment projects and supports multiple installation methods: self-adhesion, torch welding or mechanical fastenings. The low weight of the modules is indicated in the technical documentation (see specifications).

Components

• 1/ Supporting substrate
• 2/ Mineral wool insulation, class C
• 3/ IKO DUO ACIER SOLAR L4 FMP/G
• 4/ 35 PY reinforcement bracket
• 5/ IKO DUO ALPA 25 SOLAR
• 6/ ARMALU upstand

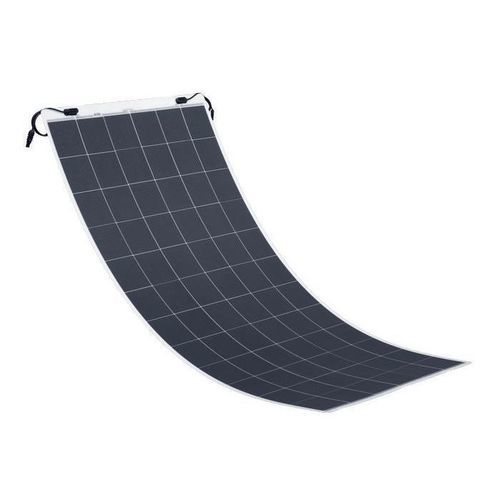

• 7/ EXCEL SOLAR module

Benefits

• Complete system rated Broof(t3) (according to conditions)
• Low module weight (values given in documentation)
• Flexibility and high adaptability to roof shape
• High photovoltaic panel efficiency
• Facilitated maintenance
• Complete system: waterproofing and flexible panels can be installed by the same roofing contractor
• Easy module installation

Characteristics (summary)

• CSTB Technical Approval
• All projects must be preceded by a technical study

Applications and installation

• Application by self-adhesion onto the waterproofing support
• Module layout is independent of the waterproofing jointing; installation possible above overlaps
• ALPA membranes (e.g. ALPAL 4000 SOLAR or ALPAL 25 SOLAR) forming the waterproofing complex provide a non-slate finish and UV resistance without primer or flake embedding
• Waterproofing: first layer mechanically fixed according to the fixation density study, second layer fully welded on the first
• EXCEL SOLAR modules: prepare the support membrane by torching off the surface film; remove the peel-off protective film on the adhesive strips on the back of the modules; apply modules and roll over at the adhesive strips; modules must be installed promptly after waterproofing application

Technical characteristics / specifications

• Process applicable to new build and refurbishment
• Installation methods: self-adhesion, torch welding, mechanical fastenings
• Compatible membranes: IKO MONO ALPA 4000 SOLAR (single-layer), IKO DUO ACIER SOLAR L4 FMP/G (two-layer), IKO DUO ALPA 25 SOLAR (two-layer)
• ALPA membranes provide a non-slate finish and UV resistance
• System classification: Broof(t3) (according to conditions)
• Technical Approval available (CSTB)
• Module weight: indicated around 2.8 kg/m² in the description; another reference indicates 2.3 kg/m² (values to be confirmed in technical documentation)
• Low load impact allowing installation on roofs unsuitable for rigid modules
• Facilitated maintenance and installation; possibility for the roofer to install the panels
