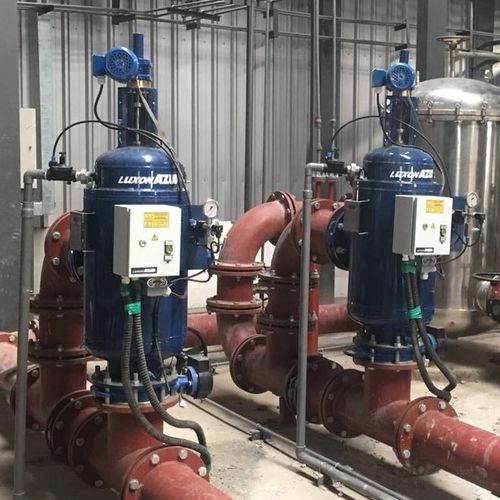

Water recovery filter LUXON LDB

water recovery filter
water recovery filter
water recovery filter
water recovery filter
water recovery filter
water recovery filter
water recovery filter
Add to favorites
Compare this product


Characteristics

Options
water recovery

Description

Automatic electric screen filters suitable for all applications and available in a wide range of micron sizes, all with the same high quality guarantee of AZUD. Max. flow: 1065 m³/h (4690 gpm). The consumption during the flushing cycle is minimal. From 10 to 1.000 micron. From 2″ to 16″. Temperature to 60ºC. Up to 21.300 cm2 The screen is made in stainless steel of high quality resistant to corrosion. The filtration process and the flushing cycle occur simultaneously. The filters are delivered to be installed. Raw water enters from the inlet manifold to the coarse screen,trapping larger particles that could interfere with the filtercleaning mechanism -in vertical models, large and heavyparticles are separated by gravity. Then water flows IN-OUT through the weave wire screen, trapping in the inner screen surface bigger particles than the filtration degree. Clean waterflows out through the outlet manifold . Particles build-up createsa filter cake that increases the pressure differential between inletand outlet, and this activates the cleaning cycle when the pre-setpoint is reached. Clean water supply is not interrupted when the cleaning cycle isactivated. The cleaning phase starts with the opening of the drainvalve, that creates a pressure gradient between the pressurizedinner filter and the atmosphere. At the same time, the suctionnozzle scanner spirals along the complete inner surface of the screen. As a result of the pressure difference, a high velocity SuctionEffect is created at the inlet of the nozzles, making the waterflows OUT- IN through the filter element and vacuuming all theparticles retained on the screen surface.
