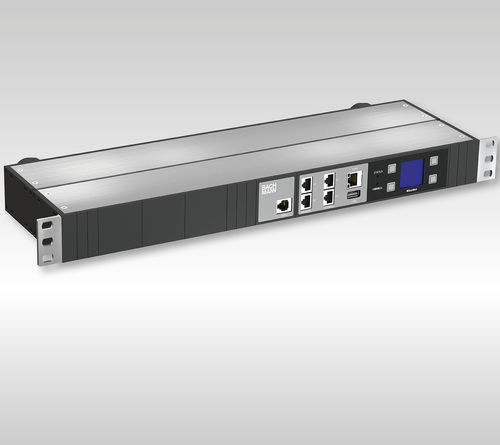

Data socket BN3000 INLINE

multiplecountertopblock

Measurement per phase Display with rotatable screen Optional technology modules such as RCM type B Cost benefit through master/slave cascading Measurement per phase, network-capable and multifunctional The BN3000 Inline is the ideal intermediary retrofit solution for equipping existing installations in data centres with the functions of the BN3000 at a later date. The BN3000 Inline enables professional energy and capacity management through network-capable measurements per phase at PDU level. Whether on-site or remotely via Ethernet: energy consumption measurements can be viewed locally on the display or via the web server using the clear and highly functional software interface. Granular measurement recording accompanied by neutral conductor monitoring and RCM type B (as an option) ensures maximum safety in the data centre. In addition, intelligent master/slave cascading in the PDU network enables cost-optimised network management. The following measurement values are displayed for each phase on the illuminated display and in the integrated web server: Current [A] Neutral conductor current [A] for three-phase versions Voltage [V] Frequency [Hz] Active power [kW] Reactive power [kVAr] Apparent power [kVA] Active energy [kWh] Reactive energy [kVArh]
