16 A / 250 V~ / IP20
VDE + KEMA-KEUR certified
Shatter-proof plastic
With strain relief

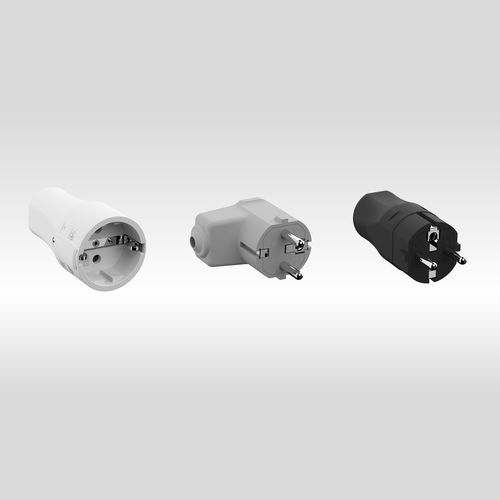

BACHMANN mounting plugs and couplings are renowned for their high-quality workmanship. BACHMANN mounting plugs and couplings are renowned for their high-quality workmanship and are suitable for use with 3G 0.75/1.0/1.5 mm² cables. The development phase focused in particular on the longer shaft, which makes the products particularly easy to handle during mounting and in everyday use.
Featuring strain relief and a separate protective rubber sleeve, the plugs and couplings are ideal for subsequent mounting. VDE and KEMA-KEUR have verified the high quality of these products.
Dimensions
Mounting plug
78x36.6x38 mm
Mounting bracket plug
59.5x36.6x44 mm
Mounting coupling
88.5x46x49 mm
Material
Housing
polypropylene
Contact carrier
polyamide + 30% glass fibre
