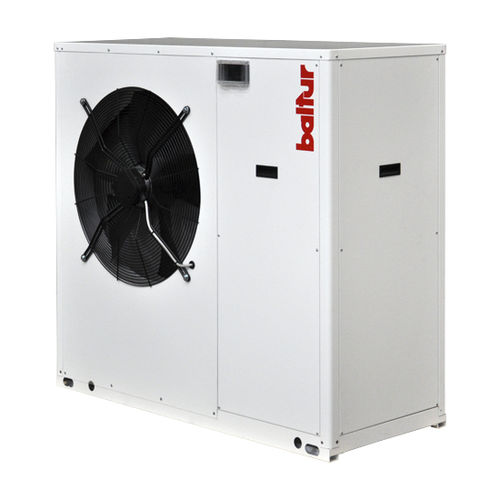

Water-cooled chiller BCHS P

floor-mounted

Water chillers and air-water heat pumps with axial fans Frame: in galvanised sheet and coated with polystyrene powders (RAL 9003) at 180 °C. Panels: easy to remove allowing full access to internal components. Compressor: revolving spiral scroll hermetic compressor (2 in TANDEM configuration for mod. 482, 552 and 602). Condenser: consisting of a coil with copper tubes and aluminium fins with large exchange surface. The fin block is protected by a metal mesh. Fans: axial fans directly coupled to the 6-pole electric motor with external rotor, protection grade IP 54. Evaporator: with brazed plates in AISI 316 stainless steel, insulated with a casing in closed cell foam material. Condensation control: (standard) with pressure transducer. Protections: on hydraulic and cooling circuit. Electrical panel: equipped with general disconnecting device, auxiliary and power circuit protection, compressor remote control switch. Microprocessor: with main functions shown on display, equipped with selfadjusting regulator to allow optimal operation in case of low water content in the system. Test: the units are tested in the factory and supplied with oil and refrigerant. VERSIONS ON REQUEST Basic. Pump only (REVERSIBLE versions). Pump and Tank (ONLY COLD versions). ELECTRIC ACCESSORIES ON REQUEST Serial interface RS485. Operation clean contacts. Soft starter. Set point compensation according to outside air temperature.
