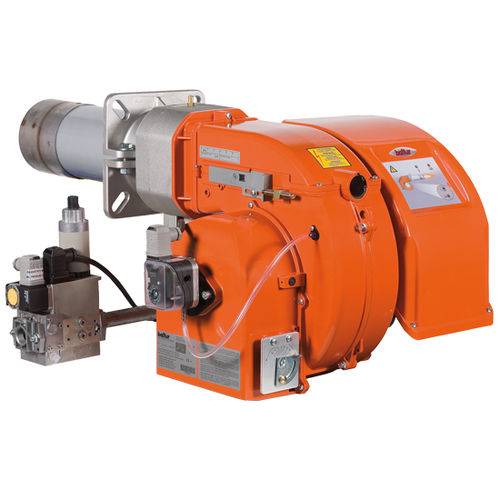

Gas burner 17275410

Single-stage gas burners. Fuel Natural Gas Operation Single-stage Minimum Thermal Power (kW) to ErP 120 Maximum Thermal Power (kW) to ErP 600 Min flow rate (Sm³/H) 13 Max flow rate (Sm³/H) 63 Electric power supply type AC No. of Phases 3N Power Supply Voltage (V) 380 Power Supply Frequency (Hz) 60 Fan Motor Power (kW) 0.6 Weight without packaging (kg) 34 Weight with packaging (kg) 42 Width (mm) 970 Depth (mm) 570 Height (mm) 480 Gas burner compliant with European standard EN676. Single-stage operation. Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 3. Regulating combustion air and blast-pipe. Combustion air intake with throttle damper. Manual adjusting of the air flow rate. Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler. Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers. CE version gas train is complete with operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter. Possibility to choose gas train with valve tightness control. Fail proof connectors for burner/gas train connection Gas train exit: high/low. Flame detection by ionisation electrode with connector for micro amp meter. 7-pole socket for burner electric and thermostatic supply. Electrical system with protection rating IP44.
