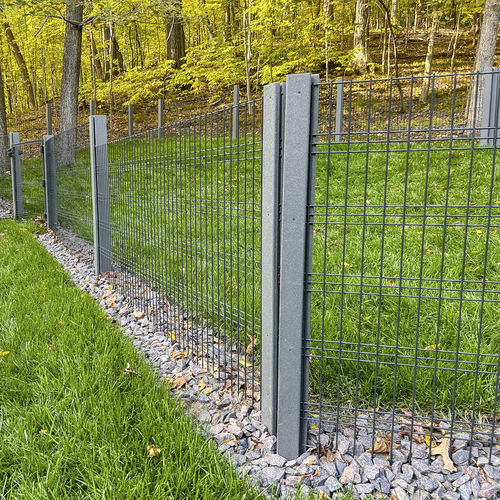

Fencing welded wire mesh WDZ-545

galvanized steelstainless steelsteel

WDZ-545 is a rectangular ornamental welded wire mesh pattern with a 4.00:1 aspect ratio. Cross wires are spaced every 2 inches while a trio of line wires are grouped every 8 inches. There are 6 groups of 3 line wires within a standard 48”x96” sheet. There are 7 groups of 2 line wires within a standard 60”x120” sheet. PATTERN DETAILS PERCENT OPEN: 83.9% OVERALL THICKNESS: 0.384 CRIMP STYLE: WDWDZ ASPECT RATIO: 4.00:1 OPENING LIMITATION: 1.808 WEIGHT: 1.04 lbs./sq. ft.
