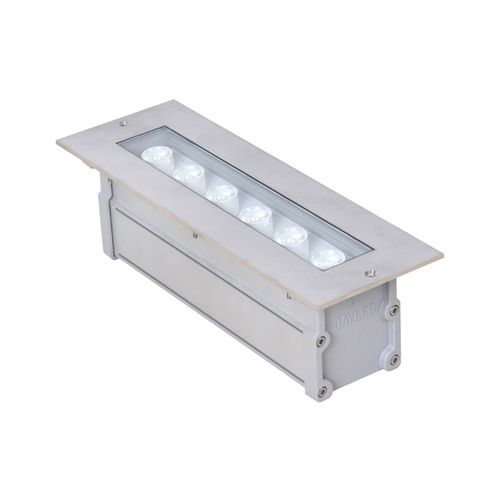

In-ground light fixture LIBRA 31

LEDlinearIP67

APPLICATION LED high-performance inground with wide & narrow beam light distribution. PRODUCT DESCRIPTION Inground made of aluminium die cast, Aluminium and stainless steel. Clear 8mm safety glass Silicon base seal gasket Mounting bracket made of steel. Electrostatic powder coating. Lens angle 8°- 25°- 45°- 60° Colour standard 7040 Optional RAL codes. LED power supply unit Input 110 – 240V AC 50 / 60 Hz Power factor > 90% full load DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class I Protection class IP67 Impact strenght IK09 Operation temperature -25°C / +55°C Weight: 2,95 kg Complies with European standards EN 60598 and CE certificate. -- Conformity mark LAMPS Module connected wattage 6W Luminaire connected wattage 12W Ambient température ta max = 55 °C NW Module désignation 15L50460NC-6 Colour température 4000K Colour rendering index Ra>80 Module luminous flux 925 Im Luminaire luminous flux 869 Im Luminaire luminous efficiency 144 Im / W WW Module désignation 15L50460NC-6 Colour température 3000K Colour rendering index Ra>80 Module luminous flux 879 Im Luminaire luminous flux 826 Im Luminaire luminous efficiency 137 Im / W Standard colour température 4000K Also available with 3000K on request.
