APPLICATION

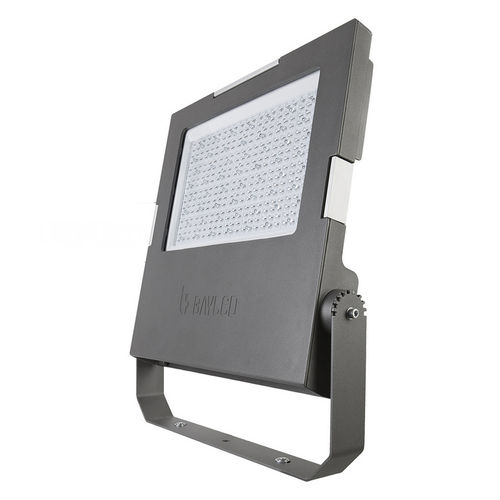

Tunable White LED high-performance floodlights with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Floodlight made of aluminium alloy,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 180°
Mounting bracket made of steel with
electrostatic powder coating.
Lens angle 15°- 40°- 60°- 90°- 30°x96° - Asym.
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI or Bluetooth(optional) controllable
0-10V / 1-10V controllable (optional)
Tunable White PWM signal with RC (Standard)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,24 m²
Weight: 14,86 kg
EULUMDAT files available
Complies with European standards
EN 60598, CE certificate
Conformity mark.
LAMPS
Module connected wattage 175W
Luminaire connected wattage 185W
Ambient température ta max = 55 °C
NW
Module désignation 15S234362NC2-336
Colour temp. between 2700 to 6500K
Colour rendering index Ra>80
Module luminous flux 27125 1m
Luminaire luminous flux 25498 Im
Luminaire luminous efficiency 146 Im / W
Viewing Angle 0°/ 45°/ 65°
Bluetooth Control (Optional)
functional intelligence for smart lighting with mobile app
