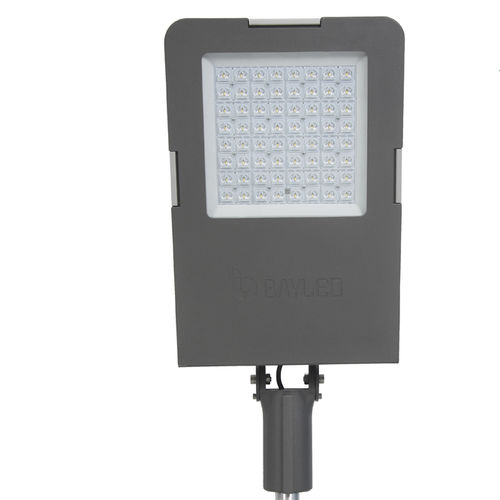

Urban lamp post B-LIGHT POWER

contemporarycast aluminumgalvanised steel

APPLICATION LED high-performance street lights with Wide & Asymmetric Beam light distribution. PRODUCT DESCRIPTION Street lights made of aluminium die cast, Galvanized steel fittings. Clear 5mm safety glass Silicon rubber gasket Swivel range with bracket 0° - 80° Mounting bracket made of steel & aluminium with electrostatic powder coating. Lens angle asimetric Colour standard MT-X6-23 Optional RAL codes. LED power supply unit Input 100 – 305V AC 50 / 60 Hz Power factor > 90% full load Standard 6kV surge protection 10kV surge protection (optional) DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class I Protection class IP66 Impact strenght IK09 Operation temperature -25°C / +55°C Wind catching area: 0,18 m² Weight: 11,34 kg EULUMDAT files available Complies with European standards EN 60598, CE and ENEC certificate. Conformity mark. Conformity mark. LAMPS Module connected wattage 90W Luminaire connected wattage 100W Ambient température ta max = 55 °C NW Module désignation 15S212240NC-64 Colour température 4000K Colour rendering index Ra>80 Module luminous flux 13275 Im Luminaire luminous flux 12478 1m Luminaire luminous efficiency 139 Im / W WW Module désignation 15S212240NC-64 Colour température 3000K Colour rendering index Ra>80 Module luminous flux 12362 1m Luminaire luminous flux 116211m Luminaire luminous efficiency 129 Im / W Standard colour température 4000K Also available with 3000K on request. Accessories Montage Bracket 20°/40°/60°/80'
