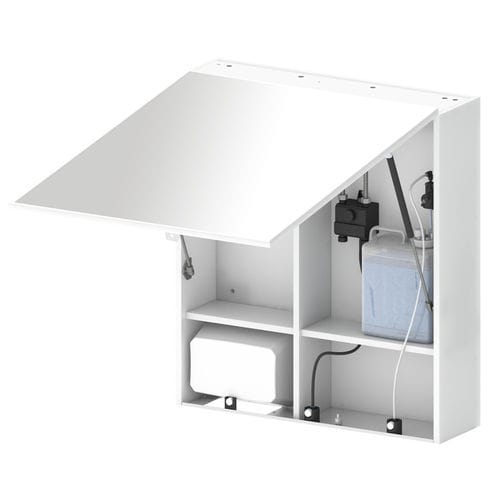

Sanitary mirror cabinet including electronic faucet, soap dispenser and hand dryer, mains operation
Sensor wash station complete sanitary cabinet with lockable mirror, incl. High-speed hand dryer, sensor mixer tap and sensor soap dispenser, run by transformer
Properties
Actuation Infrared sensor
Connection G 1/2, wall connection
Flow rate (3 bar) 3,9 l/min, water saving options available
Soap dosage 1,2 - 1,6 ml
Operation Solenoid valve + air motor + peristaltic pump
Power supply Hand dryer: 110 / 220V AC, 50-60 Hz, 1.0 kW safety plug Faucet + soap dispenser: 12V transformer 100-240V, 50-60 Hz
Color White
Settings
Sensor range Faucet: self-adjusting Adjustable from 30 - 300 mm Soap dispenser: 150 mm
Hygiene flush 24 hours after the last use, for 30 seconds, adjustable 12-72 hours / off
Security off 90 seconds adjustable with remote control
Cleaning mode 60 seconds off Power button remote control
Delay in / Delay out Yes
Soap pipe priming Yes
Technical details
Connection size G 1/2
DN Size DN 15
Working pressure 0,5 - 8,0 bar
Hot water temperature 70 ° C, short-term higher thermal disinfection
Soap viscosity 100 - 3800 cPs
pH value soap 5,5 - 8,5
Certificates CE; Hyigenezertifikat Polen;
Packing information
Measure A (mm) 865
Measure B (mm) 285
Measure C (mm) 974
Weight (kg) 50,000
