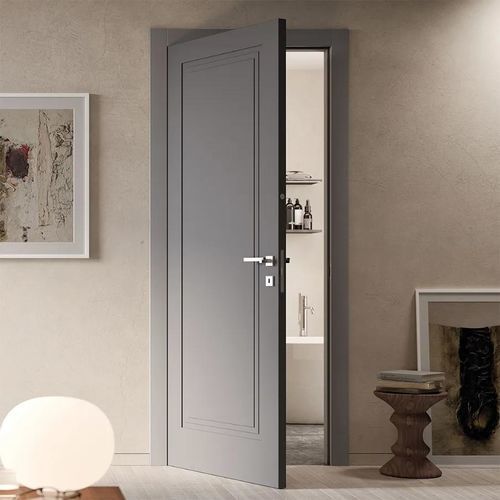

Interior door LP1 PANTONEXT

solid woodswingarmored

Overview
The PantoNext pantographed door features a double pantograph that sculpts light and shadow on the panel. Manufactured with CNC and latest-generation finishing equipment to ensure dimensional precision and uniform lacquering.

Finish and construction
PantoNext doors are finished with three coats of lacquer available in matt and silk options. The internal perimeter frame is in solid wood. The standard door core is a honeycomb type made from 100% recycled material with hot-press Kraft paper and an 8 mm MDG facing sheet. Acoustic seals (ACU PLUS), concealed hinges and magnetic lock are available as standard or on request. Optional treatments include antibacterial NO-GERMS, fire-rated (EI) variants and armored cladding.

Available opening systems

• Hinged door
• Hinged: Tall, Mini Tall and Micro Tall frame
• Folding and Double Door
• Double‑action / swing (va‑e‑vieni)
• Hinged flush-to-wall door
• Sliding flush-to-wall door
• Plana, sliding external wall
• Phantom, sliding external wall
• Phantom hinged door
• Bidirectional
• Coating for armored/security door

Available models / examples

• LP1 Matte Lacquered Quartz (swing)
• LP1 Matte White Lacquered
• LP8 Matte Silk Lacquered
• LP8 Matte Lacquered Quartz Sliding Pocket
• LP1 Armored coating (matte lacquered white)
• LP6 Matte Lacquered Forest Green
• LP88 Matte Lacquered Quartz
• PV88 Matte Lacquered Quartz with extra clear satin white insert glass

Frames and trims
PantoNext doors are supplied with TKT frame and L9/P85 trims (certified IDRO, CARB, FSC®). On request the TR/L8 frame with soft, rounded profiles is available.

Colours and options
A wide palette of colours is available to meet interior design requirements. Options include armored cladding, a range of glazing inserts, acoustic and fire-rated variants and multiple opening systems including pocket sliding and flush-to-wall solutions.

Technical specifications

• Finish: Industrial/hand lacquered; matt and silk options
• Coating: Three coats of lacquer
• Perimeter frame: Solid wood
• Core: Honeycomb type; 100% recycled material with hot-press Kraft paper
• Facing sheet: 8 mm MDG sheet
• Standard frame: TKT
• Trims: L9 / P85 (IDRO, CARB, FSC® certified)
• Optional frame: TR / L8 (soft, rounded profiles) on request
• Available opening systems: Hinged, tall/mini tall/micro tall, folding/double, pocket sliding, flush-to-wall, external sliding, phantom, bidirectional, etc.
• Examples of models: LP1, LP6, LP8, LP88, PV88
