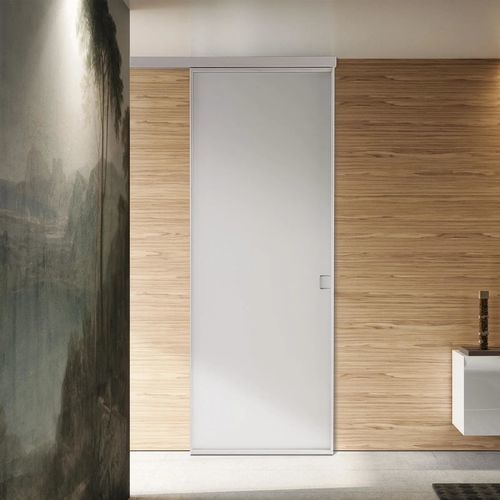

Sliding patio door GRAFITE

woodenMDFwooden frame

Overview
The Grafite Collection comprises several types of soft-finish laminate interior doors, in trendy modern colours and fitted with high-end equipment. The decorative melamine are available in five different colours: Blank, Grano, Ghiaccio, Ghianda and Gris. Owing to the variety of solutions and to the extensive customisation possibilities, Grafite doors are the ideal solution for any room in contemporary architectural projects.

Hygiene and finish
The structured melamine finish is treated with anti-bacterial additives which, thanks to microbiologically tested technology, reduces the bacterial load by up to 99% within 24 hours. The all-glass or glass-insert versions with Satin Extraclear finish provide a uniform, low-reflectance surface suitable for high-spec interior schemes.

Frame and edge details
The Minimal style of the new water-resistant TKT frame, which features flush-fitting edge covers, characterises a modern door that blends in seamlessly with contemporary interiors. The LSB frame and the MDF edge cover are IDRO, CARB, FSC® certified; the edges and corners have a minimum rounding of 1mm, emphasising the modern appeal of the product thanks to the flush-fitting with the leaf.

Details

• UNI 9428 scratch resistance
• Scratch resistance value = 5 HIGHEST VALUE ACHIEVED
• NO-GERMS anti-bacterial treatment

• EN335 water-resistant certified LSB wood with ZERO formaldehyde
• IPER 4 BOARD leaf edges on all 4 sides
• ECO honeycomb made from 100% recycled paper
• ACU PLUS noise-damping seals as standard
• Extensive customisation possibilities
• Available with various opening mechanisms including sliding systems
• Also available as armoured door cladding
• Available in the all-glass version or with glass inserts
• Adjustable anti-warping tie rods as standard for heights over 2350 mm

Technical specifications

• Collection: Grafite
• Product type: Interior door — sliding glass door variant
• Finish: Glass Satin Extraclear (satin finish) and structured melamine with anti-bacterial additives (reduces bacterial load up to 99% within 24 hours)
• Frame options: Water-resistant TKT frame (minimal style) with flush-fitting edge covers; LSB frame available
• Certifications: LSB and MDF edge cover IDRO, CARB, FSC® certified; EN335 water-resistant certification for LSB wood
• Edges & corners: Minimum rounding 1 mm; IPER 4 BOARD leaf edges on all 4 sides
• Core: ECO honeycomb made from 100% recycled paper
• Seals: ACU PLUS noise-damping seals as standard
• Scratch resistance: UNI 9428; scratch resistance value = 5 (highest)
• Anti-bacterial treatment: NO-GERMS
• Customisation: Extensive; multiple opening mechanisms including sliding systems; available as armoured cladding; all-glass or glass-insert versions
• Anti-warping: Adjustable tie rods standard for heights above 2350 mm
