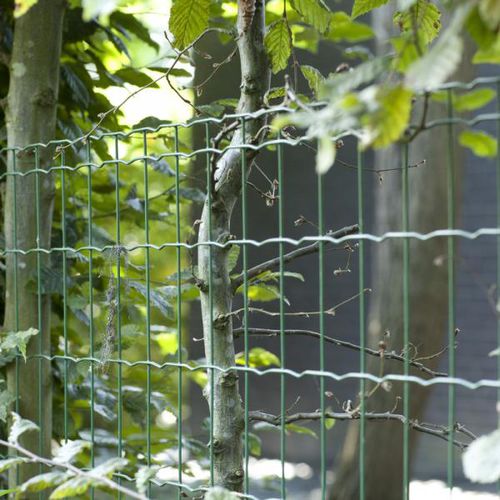

Welded mesh fencing PANTANET FAMILY

residentialgalvanized steelcontemporary

The reference for fencing garden and houses The Pantanet® system is a total system, composed of welded galvanised and plastic coated fence on rolls and adapted posts. Assets: - Aesthetic and discreet - High longevity - Quick and professional installation - Complete system MESH Galvanised mesh, manufactured from a galvanised wire, resistance welded and then plastic coated. The horizontal wires show a crimp at every mesh. At 25,4 mm from the top and at the bottom, the mesh is reinforced with a second selvedge wire. • Mesh : 101.60 x 50.80 • Horizontal wire diameter: 2.50 mm • Vertical wire diameter: 2.50 mm • The tensile strength of the wire: ○ Horizontal: min. 400 N/mm² ○ Vertical: min 700 N/mm² Pantanet Family garden fencing can be installed with metal Bekaclip posts (diam 48 mm). The straining and intermediate posts have a mesh fixing strip and are supplied with plastic top caps. The fixing clips are of stainless steel. The round post: n and outside galvanized with a min. layer thickness of 275g/m² (2 sides combined) following Euronorm 7110326. Galvanized and plastic coated with polyester with a min. layer thickness of 60 microns. Match your Pantanet Family garden fencing with high tech gates type Fortinet or Robusta: single and double gates, swing and sliding gates. These garden fencing rolls are made out of galvanized wires. A pre-treatment process guarantees a perfect PVC coating adhesion to the product surface. Fence: Green BF 6073 - Metallic anthracite BF7016M or RAL 7016 Posts: Green RAL 6005 - Metallic anthracite BF 7016M or RAL 7016
