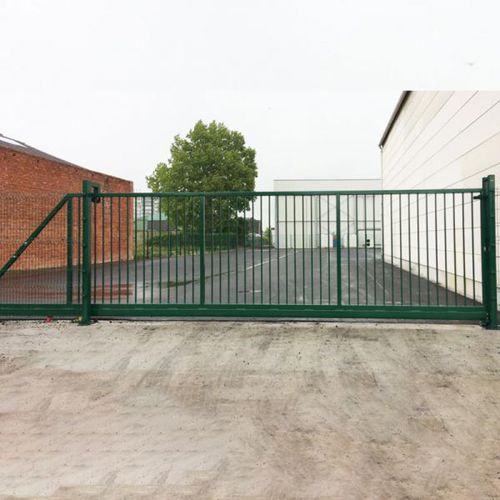

The cantilever gate
The "basic" gateEgidia® SC cantilever sliding gates are developed for industrial and residential areas. The design of the gate results in great value for money.
Assets:
- Wide range of heights available
- Price/Quality
- The universal design matches any fencing system
- Safety - conforms to EN 13241-1
BENEFITS
• CE certified
• Delivered completely pre-assembled - plug&play
• Same electrical system as Robusta SC
• HDG or HDG + PES coated for excellent corrosion protection
OUR CANTILEVER GATES ARE AVAILABLE IN 3 DIFFERENT VERSIONS
• Manual gate: our gate is designed for manual operation and is fitted with a key-operated built-in lock. The direction of the opening can be reversed on site at the time of installation.
• Motorisable gate: our gate is designed for the installation of an external motor later onwards. A dental rack is mounted on the beam and inspection plates are provided for the passage of wiring afterwards.
• Motorised gate (fully automatic): due to our exclusive partnership with FAAC, we can offer you a gate that is factory fitted with an external motor and all necessary safety items and operation items. The gate is delivered fully prewired, and ready to operate. We offer one type of motorisation, for intensive use.
GATE WING
• Underbeam: 120x100x5 mm
• Lower profile of the frame: 90x60x2 mm (rest of frame 60x60x2 mm)
• Two roller sets with polyamide rollers are foreseen to each gate
• Qualitative locinox lock is foreseen as standard for manual gates
• Welded frame
• Standard tubular infill (3D panel infill possible as option)
• Integrated tension system
