Access control control panel LUNA AC B

wall-mountedwirelesscommercial

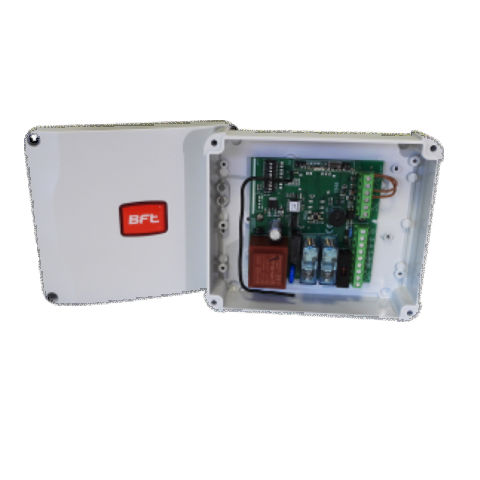

Control board for 230V and 1200W operator for rolling shutters with maximum manoeuvrable power supply. Main characteristics: Dedicated output for the blinker, availability of open, start, photocell and safety edge (tested) inputs, antenna and receiver integrated Logic and regulations: adjustable working time, option of selecting the kind of safety edge (N.C. contact/8K2 resistance) selectable, wireless memorizing of transmitters CLONE and REPLAY, operation in line with 2 or 4 step logic, exclusion of photocell active when opening, hold to run mode available. LUNA AC B 120V 50/60HZ Control board for rolling shutters. 120V voltage and a maximum power supply of 1200W LUNA AC B 230V 50/60HZ Control board for 230V and 1200W operator for rolling shutters. Main characteristics: Dedicated output for the blinker, availability of open, start, photocell and safety edge (tested) inputs, antenna and receiver integrated Logic and regulations: adjustable working time, option of selecting the kind of safety edge (N.C. contact/8K2 resistance) selectable, wireless memorizing of transmitters CLONE and REPLAY, operation in line with 2 or 4 step logic, exclusion of photocell active when opening, hold to run mode available.
