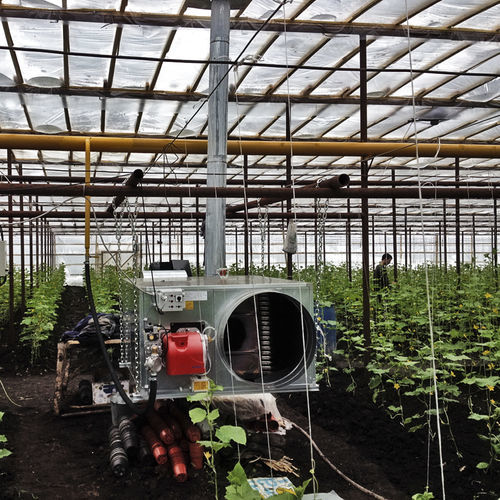

Fuel oil hot air generator FARM
kerosenenatural gas

fuel oil hot air generator
fuel oil hot air generator
fuel oil hot air generator
fuel oil hot air generator
fuel oil hot air generator
fuel oil hot air generator
fuel oil hot air generator
Add to favorites
Compare this product


Characteristics

Energy source
natural gas, fuel oil, kerosene

Description

The unit can be installed horizontally or vertically Burner is supplied with snorkel outlet to ensure clean combustion air through connection with external air aspiration duct The new heat exchanger combined with the new high-performance fans allow for heat output of 92 / 93% Before heating and after cooling of combustion chamber Combustion chamber inspection glass peephole Thermostat: FAN for fan control; LIMIT: for burner control; OVERHEATING: safety thermostat in case of overheating, with manual reset Panels with reinforcement cross fold to ensure higher rigidity and strength Bearing structure with removable panels for internal washing, even on hanging machines All installation inserts and screws are exclusively metric, not self-tapping Fan: - in compliance with directive ERP 2015 - extremely low-noise fan (noise level less than 69 db at 1 meter) - with 7 blades: high performance (air flow and static pressure) for uniform diffusion of warm air - through the perforated duct - insulation class IP55 - fan inlet to carry the air and ensure high static pressure Electric switchboard: - can be connected to thermostat/humidistat/timer - can be connected to a central control unit through wired terminal Each main component (fan, burner, electrical switchboard, thermostats, etc.) is supplied with quick couplings of electrical connections IP68: - quick assembly and disassembly and techncial interventions - elimination of installation and disassembly errors Sturdy suspension hooks in stainless steel for ceiling installation and support feet in stainless steel for floor installation
