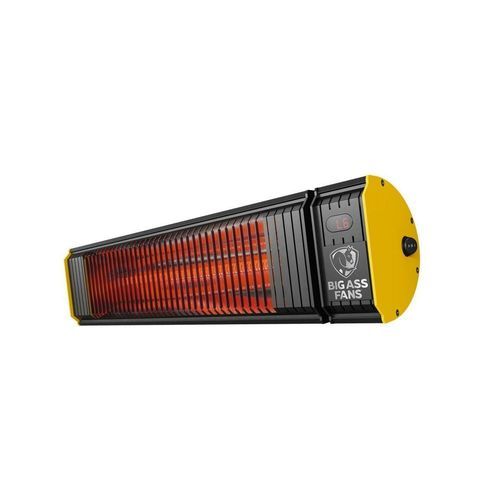

Ceiling-mounted infrared heater OBSIDIAN®

hangingelectriccommercial

Overview
Instant, targeted infrared heat for outdoor and semi-outdoor commercial spaces. The OBSIDIAN® Electric Infrared Heater uses an aerospace-grade carbon fiber element to warm people and objects directly, providing rapid comfort on patios, terraces, garages and work areas. IP65-rated housing and included remote control support reliable, year-round outdoor operation.

Key Features

• Rapid radiant heat: Carbon fiber infrared element heats people and objects directly — not the air; up to 6,000W covers up to 160 sq ft.
• All-weather construction: IP65-rated epoxy powder-coated aluminum housing — dustproof and rainproof for continuous outdoor exposure.
• Long-life element: Carbon fiber heating element rated for up to 8,000 hours of operation.
• Flexible installation: 120V model ships with cord and plug for plug-in use; 3,000W and 6,000W models are intended for hardwired installation; remote included with all models.
• Finish options: Available hardware finishes include Yellow and Black.

Technical Documentation

• Tech Specs (cutsheet)
• Install Guide 1500W
• Install Guide 3000W
• Install Guide 6000W
• Warranty

Technical specifications

• Model name: OBSIDIAN® Electric Infrared Heater
• Heating element: Aerospace-grade carbon fiber infrared element
• Element life: Up to 8,000 hours
• IP rating: IP65 (suitable for full outdoor exposure; dustproof and rainproof)
• Housing: Epoxy powder-coated aluminum
• Wattage options: 1500W, 3000W, 6000W
• Coverage: Up to 160 sq ft (at 6,000W)
• Voltage options: 120V (plug-in model), 208–240V (hardwire models)
• Power/installation: 120V model ships with cord and plug; 3000W and 6000W models intended for hardwired installation
• Controls: Remote included with all models
• Finish / hardware options: Available hardware finish options include Yellow and Black
