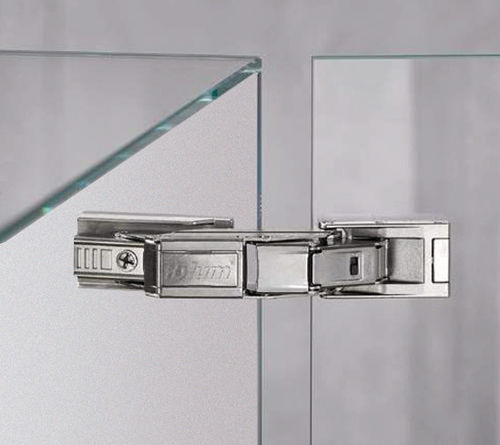

Glass door hinge BO 5206080

cast-zinchomecontemporary

Mounting - glass/glass Material - steel diecast zinc Finish - matt nickel-plated Fixing type - Bonded without glass processing Max. door weight per pair - 6 kg Position - – Opening angle - 105 ° • Damping mechanism can be deactivated • Door does not protrude into carcass when opening • Distance door to body up to 19 mm • inset and overlay doors • Adjustment dimensions max. height / depth / width ±3 / +3 - -2 / ±2 mm • Door size max. 600 x 2400 mm • Glass thickness 3 - 8 mm • Packaging unit 1 pc • Weight Table Hinges: A = Number of hinges · B = Front height (mm) · C = kg
