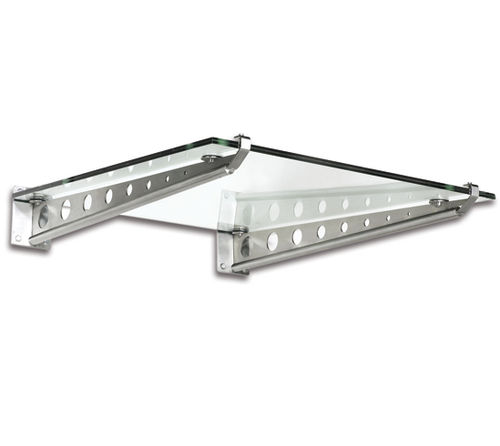

entrance canopy / glass / metal
BO5211041

{{requestButtons}}

Characteristics

  • Applications:

    entrance

  • Material:

    glass, metal

Description

Within the established maximum dimensions (see table), the canopy width is variable.

You need:
Glass Dimensions / qty / model
1800 x 1200 mm (semi-tempered glass) / 2 items / BO 5211041
2900 x 1200 mm (semi-tempered glass) / 3 x BO 5211041
1400 x 1200 mm (float) / 2 items / BO 5211041
2100 x 1200 mm (float) / 3 items / BO 5211041
Differing canopy dimensions possible
Information available on request
Drawing: (t = material thickness) 1 Support arm t = 5 2 Support tube ø33.7 x 2 3 Thread receiving element ø30; H = 30 4 Counter disc ø30; t = 5 5 Support disc ø65; t = 5 6 Front clamp B = 30; t = 5 7 Rear clamp B = 30; t = 5 8 Tube cover ø33.7; t = 7 9 Wall connector H = 200; B = 140; t = 8 10 Threaded pin M 10 x 30 11 Rubber washer 30 x 20 x 3 12 Rubber washer E 65


Please note:
The Bohle Smart canopy system must be securely fixed directly to a suitably solid wall, through any thermal insulation layer.

Wall bracket
Glass model 1: semi-tempered: 16 mm laminated safety glass of 2 x 8 mm semi-tempered glass, PVB film 1.52 mm
Glass model 2: float: 16 mm laminated safety glass of 2 x 8 mm float glass, PVB film 1.52 mm
Please note: Supplied without glass!
Weight 8.5 kg
