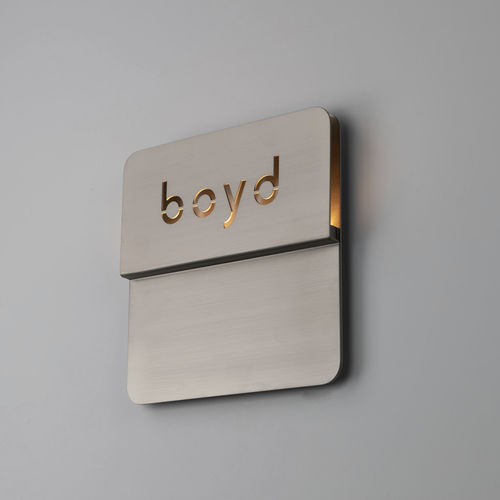

Warm, ambient light glows from behind a plateau of bent brass. Add street or suite numbers to make a gorgeous destination. Designed by Deirdre Jordan.
Dimensions
Plateau 6″ (10714)
6″ sq. x D 1⅛”
15.2 cm sq. x D 30 mm
Plateau 10″ (10715)
10″ sq. x D 1¼”
25.4 cm sq. x D 32 mm
Plateau 14″ (10716)
14″ sq. x D 1¼”
35.6 cm sq. x D 32 mm
Net Weight
Plateau 6″
4 lbs.
1.8 kg.
Plateau 10″
7 lbs.
3.2 kg.
Plateau 14″
9 lbs.
4.1 kg.
Backplate / J-box
Plateau 6″
5″ sq.
12.7 cm sq.
Plateau 10″
9″ sq.
22.9 cm sq.
Plateau 14″
13″ sq.
33 cm sq.
Lamping
LED lamps (included) offer 2700°k, 90+ CRI illumination at 120 or 277v. The 6″ sconce uses 2.4 watts, providing ~200 lumens and the driver must be mounted remotely. The 10″ and 14″ sconces emit 6.3 watts, ~400 lumens. The partially recessed driver requires a deep 31⁄2” octagonal j-box, or the driver must be mounted remotely. Upcharges will apply for LED remote dimming dependant on your dimming system . Contact your local Boyd Rep.
Additional Information
UL listed (or equivalent) for damp locations.
For Signage, numbers and lettering available in the following fonts: Ariel, Century Gothic, Courier, Helvetica, Times New Roman.
Available Finishes
Antiqued Boyd Brass
Satin Brass
Satin Nickel*
