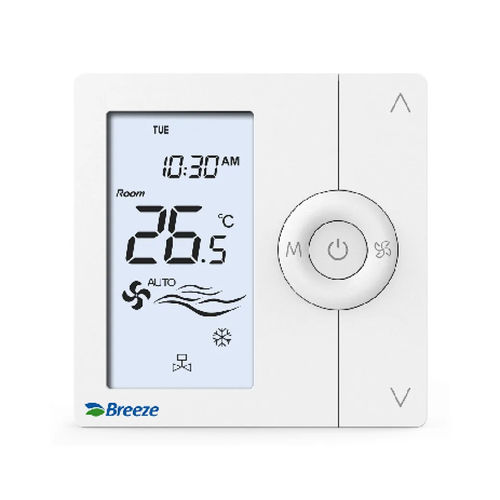

Digital thermostat BC103-4EDM

programmableroomfor air conditioning

0~10V AC Thermostat – Precision Comfort for Smart Spaces Our 0~10V ac thermostat offers accurate climate control for modern buildings, with 0–10V output regulation, modern design, and seamless integration into BMS platforms. 0–10V output for EC Motor Fan or Valve Control 2-pipe and 4-pipe system compatibility Modbus RTU and RS485 communication for easy BMS integration Full 7-day programmable scheduling Heating, cooling, and ventilation modes Open window detection and adaptive temperature compensation Full OEM/ODM customisation: Logo, interface, colour, packaging CE Certification Key Features Supply Voltage: 85~230Vac /24Vac.50/60Hz Control Device: 2pipe/4-pipe FCU DX Unit Switch Rating: 5A (7A as optional) Max.Fan Load: 1A/3A inductive 3A resistive Fan Control: 0~10V EC motor fan Valve Control: on/off Heat/Cool: Cool&Heat&Auto Remote Sensor: NTC10K Communication: Modbus Hotel Card: Yes-Dry contact(window/door/PIR sensor) Backlight: Black&White Temperature Display:Celsius/Fahrenheit Programmable:5+2/7 Days 4 Periods Setpoint Range: 5~35℃ Temperature Display - :0.1℃ Ambiente - Storage:-20℃-60℃ Operating: 0~50°C Humidity:5~95% Product Color: White RAL9010 Cycling Fan: Yes Approval: EN60730-1 CE Standard Installation: Flush/Surface Mounting Housing Material: PC+ABS IP Grade: IP 30
