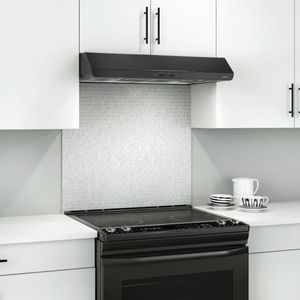

Wall-mounted range hood BUF403BL
with built-in lightingductedblack

wall-mounted range hood
wall-mounted range hood
wall-mounted range hood
wall-mounted range hood
wall-mounted range hood
wall-mounted range hood
wall-mounted range hood
Add to favorites
Compare this product


Characteristics

Type
wall-mounted
Options
with built-in lighting, ducted
Color
black, white
Width

30 in

Depth

18 in

Height

6 in

Description

The BUF4 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble-free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation Provides installation flexibility with 4-way convertibility to fit virtually all applications Simple to use rocker switches let you adjust the fan speed and the light setting separately Two fan speeds help you tackle a variety of venting jobs 230 Max Blower CFM quickly removes smoke and cooking odors from the air Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately) Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately) Includes a 3-1/4 in. x 10 in. damper/adapter for easy installation (7 in. adapter and damper sold separately) Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning One year limited warranty UL listed and HVI 2100 certified For those kitchens that do not have a cabinet above the range, Broan-NuTone offers the Model 35 Range Hood Mounting Brackets.

Catalogs

No catalogs are available for this product.

See all of BROAN‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
