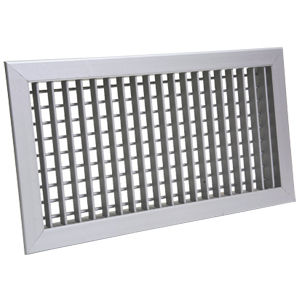

Galvanized steel ventilation grill BMA
anodized aluminumrectangularadjustable

galvanized steel ventilation grill
galvanized steel ventilation grill
Add to favorites
Compare this product


Characteristics

Material
galvanized steel, anodized aluminum
Shape
rectangular
Other characteristics
adjustable
Width

Min.: 100 mm (4 in)

Max.: 500 mm (20 in)

Length

Min.: 200 mm (8 in)

Max.: 1,000 mm (39 in)

Description

CHARACTERISTICS: Supply grilles with adjustable blades 20 mm pitch. CONSTRUCTION: Anodized aluminium. UTILIZATION: For wall installation and for air delivery. Installation height: 2,5 - 3,5 m. FIXING: • Standard fixing by clips. • Holes for screws upon request. • Magnets on request (CL). • Clamps upon request (KC). ACCESSORIES: • Galvanized steel plenum, standard or insulated. • Calibration damper made of galvanized steel and fins with opposite movement. • Mounting counterframes made of galvanized steel sheet.
