Hot water radiator MINI COMPACT

751 w...1000 w1001 w...1500 w501 w...750 w

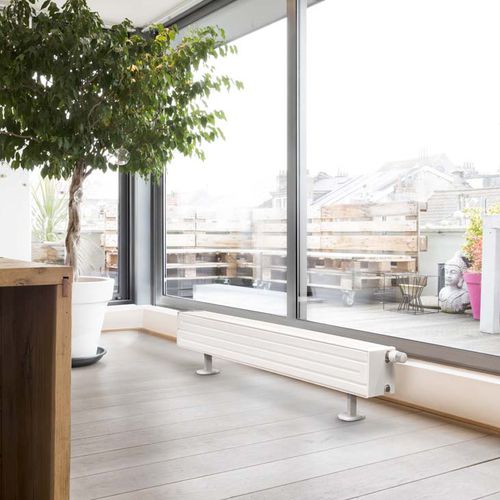

The Mini Compact is a modest radiator with a typical look, high thermal output and graceful aura. The elegant, robust decorative grille and the fine side panels give this model a characteristic appearance. Love the traditional, elegant look of a radiator? Then go for our Mini Compact radiator. Pipes and valve bodies are fully concealed, so that you can optimally enjoy the classic design. The Mini Compact, with a height of only 150 to 200 mm, is ideal as a plinth radiator under high, large windows. The thermal output of this small radiator is on a very high level. The Mini Compact is available in a wall model or free-standing set-up. Product Plinth radiator with a right bottom connection and four side connections with included valve insert. By using the brackets it is possible to mirror reverse the radiator, so that the thermostat knob can be mounted on the left or right. Material Steel Finish Top grille and side panels Included Wall or foot bracket (to be ordered separately) Connections 2 x ¾” external thread euroconus middle connection, 4 x ½” internal thread side connections Packaging Each radiator is robustly packaged in high-quality cardboard and then shrink-wrapped. A label describes the radiator characteristics: type - height - length. Guarantee 10 years, if the general terms and conditions of Brugman are respected. Lacquer process All radiators are degreased, phosphated, cataphoretically primed and powder-coated standard in RAL 9016. Color RAL 9016 (other colours can also be delivered on request: see colour chart)
