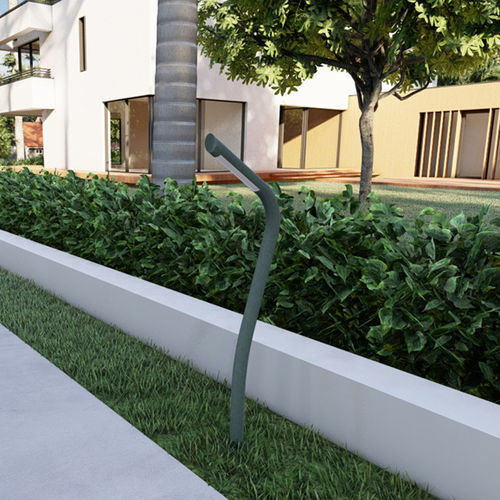

iBaton is an elegant lighting element that is suitable for both modern and classic architecture. Ideal for creating visual guidance with exceptional visual comfort using LED technology.
Designed to last in extremely harsh environments.
LED Type - High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Nominal Voltage - 220V-240V AC, 50/60Hz
Color Rendering Index - CRI> 80 standard and CRI>90 on request.
Light Distribution - Diffused downward beam.
Materials - Corrosion resistant double layer polyester powder coated paint finish hot dip galvanised steel housing, with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating - Marine grade.
Diffuser - Shockproof PMMA UV Stabilised Diffuser.
LED Specification. - L90B50 > 100000 hours life time.
Energy Effciency Class (EEC) - A++
Operating Temperature - -40°C / +55°C
Power Factor - >0.95
Control Systems - DALI Interface.
Protection Class - IP65
Impact Resistance - IK08
Insulation Class - Class I
Conformity - Complies with European Standards EN 60598 and CE certified.
