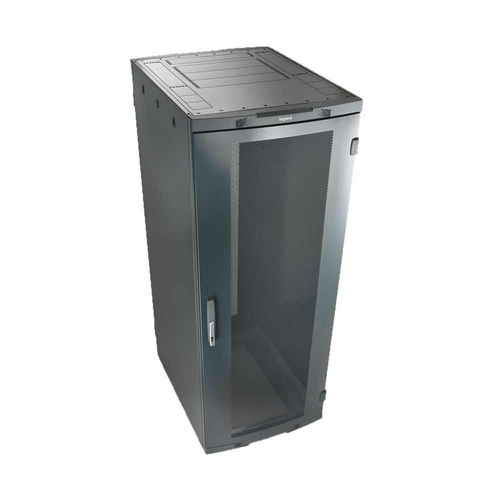

Recessed electrical cabinet SERVER

equipped

Floor cabinets Btnet 19” floor cabinets have been designed to satisfy requirements of appearance, simplicity of installation and maintenance efficiency. The finish is in RAL 7035 anthracite grey and 7016 black. Metal floor cabinets (coated in textured polyester) guarantee excellent resistance to corrosion and scratches. Btnet 19” floor cabinets have a reversible curved door (single or double) with silk-screen printed safety glass. The cabinets can be joined together with a side-mounting kit and can be completed with a wiring unit. Btnet is a complete system to create the building digital infrastructure. All the offer components have therefore been designed as consistent components to optimise the network performance, from the technical room to the workstation. The system components are: Connectors: two types of solutions are available, Toolless IDC and 110 IDC. Thanks to the new Toolless IDC connector a perfect connection can be obtained without tools in a few seconds guaranteeing excellent performance of the link. It is available in all categories (5E, 6 and 6A) for installation on both patch panels and workstations. The 110 IDC connector is the solution for cutting insulating material using tools. It is available only for 5 E and 6 categories. Copper transmission medium: Data transmission cables are made up of four pairs arranged inside a sheath according to a specific layout, which is necessary to reduce attenuation and crosstalk problems. This layout consists of twisting the pairs of conductors individually. These pairs are identified using standard colours.
