Steel retaining wall

modularfor green spacesfor public spaces

Product overview
Create structure and levels in gardens and public spaces with a folded corten steel retaining wall available in 3 or 5 mm thickness. The folded edges increase rigidity and give a precise, architectural finish. The warm rust patina of corten steel develops naturally over time, offering an aesthetic, maintenance-free solution in Danish design — suitable for private gardens, parks, and landscape architecture projects.

Key features

• Danish design and production (byJEMA)
• 3 mm (up to 60 cm) or 5 mm (80–100 cm) corten steel
• Folded construction for strength and neat joints
• Modular system — combine lengths and heights freely
• Maintenance-free patination; long service life

Specifications
Material: 3 mm corten steel (up to 60 cm height) / 5 mm corten steel (80–100 cm height)
Design: Folded construction with precise joints for stability and aesthetics
Production: Manufactured in Denmark at byJEMA’s own factory
Surface: Supplied with a thin protective oil film; patination develops naturally over time
Application: Terrain division, level changes, architectural landscaping and borders

Standard dimensions (table)
Height (cm) | Steel thickness | Depth (cm) | Lengths (cm) | Weight per element | Drain hose
20 | 3 mm | 10 | 298 · 148 · 99 · 49.5 · 24.5 | approx. 2–26 kg | Ø82 mm
40 | 3 mm | 15 | 298 · 148 · 99 · 49.5 · 24.5 | approx. 5–50 kg | Ø82 mm
60 | 3 mm | 25 | 298 · 148 · 99 · 49.5 · 24.5 | approx. 10–75 kg | Ø102 mm
80 | 5 mm | 34 | 298 · 148 · 99 · 49.5 · 24.5 | approx. 10–175 kg | Ø102 mm
100 | 5 mm | 34 | 298 · 148 · 99 · 49.5 · 24.5 | approx. 25–210 kg | Ø102 mm

Assembly & delivery
All walls are made to order and shipped from byJEMA within 5–10 business days. Use the shorter sections (24.5 and 49.5 cm) for corners and terminations and longer lengths for continuous clean lines. Assembly instructions (PDF) are provided.

Maintenance
Corten steel is essentially maintenance-free: the surface forms a protective rust patina that prevents further corrosion. After installation, rinse with mild soapy water to remove the oil film. Colour progression ranges from bright orange to deep rust brown. To accelerate patination, lightly spray with saltwater.

Inspiration

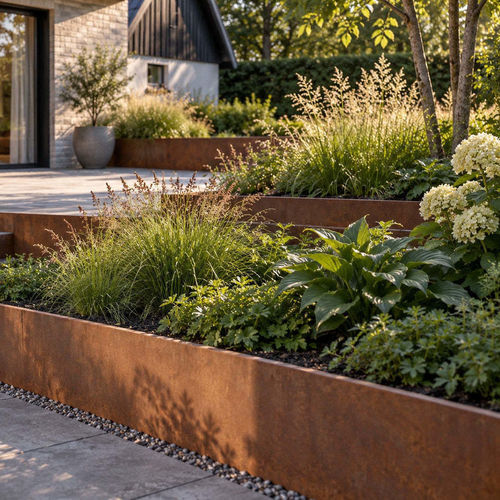

A corten retaining wall is both functional and aesthetic — ideal for modern gardens, plazas and green infrastructure. Use it for terrain division, terraces and level differences. Combine corner and straight modules for harmonious compositions and pair with corten planters and raised beds.

Technical specifications

• Material: 3 mm (up to 60 cm) / 5 mm (80–100 cm) corten steel
• Design: Folded construction with precise joints for stability and aesthetics
• Surface finish: Supplied with a thin oil film; patinates naturally to a protective rust layer
• Production: Manufactured in Denmark (byJEMA)
• Standard lengths: 298, 148, 99, 49.5, 24.5 cm
• Available heights: 20, 40, 60, 80, 100 cm
• Depths by height: 10 cm (20 cm height), 15 cm (40 cm), 25 cm (60 cm), 34 cm (80–100 cm)
• Weight per element (approx.): 2–26 kg (20 cm), 5–50 kg (40 cm), 10–75 kg (60 cm), 10–175 kg (80 cm), 25–210 kg (100 cm)
• Drain hose diameters: Ø82 mm (lower heights) / Ø102 mm (taller heights)
