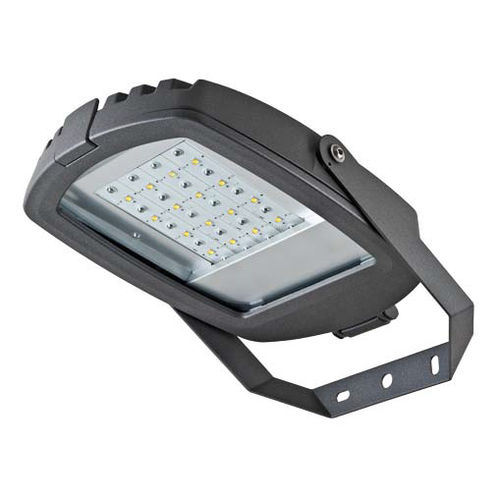

Housing and frame: die-cast aluminum.
Paintwork: thermosetting polyester powder.
Glass: tempered 4 mm.
Available versions:
SM, supplied without lens to increase efficiency;
AS, asymmetrical lens with vertex at 50°;
ST, road lens with asymmetry vertex at 30°;
CYC, symmetric road lens ideal for cycle paths.
Power supply: 220-240V 50-60Hz with electronic ballast, surge
protection 6Kv, NTC thermal sensor.
Bracket: 3 mm thick shaped steel.
Available on request:
ᐧ Timed flow reduction
ᐧ Dimmable DALI ballast
ᐧ Goretex filter
ᐧ Additional optics
ᐧ Customized LEDs current driving (350/500/840mA)
