Shower drain grate C30100EPZF8Vstainless steel
Add to favorites
Compare this product
Characteristics
- Product applications
- for shower
- Material
- stainless steel
Description

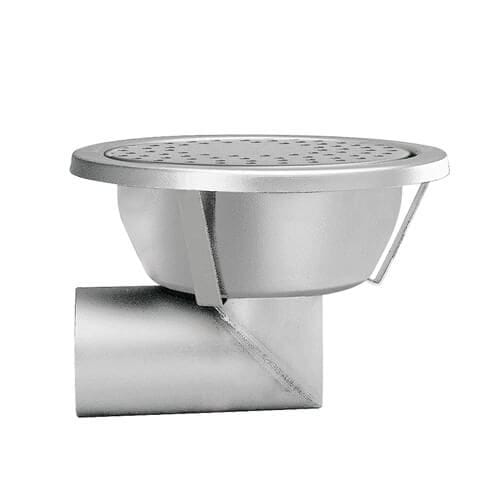

AISI 304 STAINLESS STEEL SIPHON DRAIN TRAP COVER, Caggiati Company model C30100EPZF8V size Ø300mm with drain Ø 100mm at 90 degrees, basket with holes Ø 8mm anti-rat, cover with holes Ø 8mm class M125 in compliance with regulation UNI EN 1253.
CONCENTRATED LOAD -
1400 kg
DIMENSIONS -
300 mm
LOAD CLASS -
M125
SAFETY SCREW INCLUDED -
Yes
CAPACITY -
122 l/min
WASHER -
Holes Ø 8 mm carriageable
OUTLET -
Lateral
