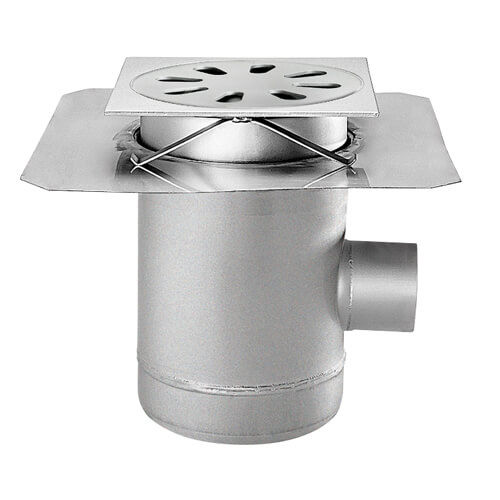

Stainless steel floor drain C2590TLPDR bathroomgratedvertical
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Applications
- bathroom
- Options
- grated, vertical
- Shape
- round
Description
AISI 304 STAINLESS STEEL SIPHON DRAIN TRAP COVER, Caggiati Company model C2590TLPDR size 250x250mm H.380mm with lateral outlet Ø 88,9mm, with pipe union for insulating sheath 450x450mm, basket with holes Ø 8mm anti-rat, cover with double reinforcements class C250 in compliance with regulation UNI EN 1253-2.
CONCENTRATED LOAD -
1300 kg
DIMENSIONS -
250 mm
LOAD CLASS -
M125
SAFETY SCREW INCLUDED -
No
CAPACITY -
80 l/min
WASHER -
Double Reinforcement
OUTLET -
Lateral
